MS112B Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

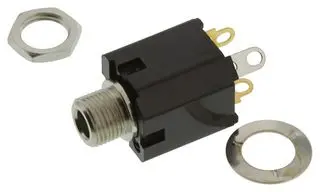

PHONE AUDIO CONNECTOR, 3 CONTACTS, JACK, 6.35 MM, PANEL MOUNT, METAL BODY
| Part | Thread Size | Panel Hole Size | Panel Hole Size | Body Material | Contact Material | Housing Material | Contact Material - Plating | Body Color | Includes | Features | Signal Lines | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Gender | Shielding | Mounting Type | Connector Type | Actual Diameter [diameter] | Actual Diameter [diameter] | Termination | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Internal Switch(s) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 3/8"-32 | 0.375 in | 9.53 mm | Brass | Brass | Polyester Glass Filled | Tin | Black Silver | 1 Nut 1 Washer 3 pcs - 1 Connector | Mounting Hardware Thread Lock | Stereo (3 Conductor TRS) | 5.23 mm | 0.206 in | Female | Unshielded | Panel Mount Through Hole | Phone Jack | 0.21 in | 5.33 mm | Solder Eyelet(s) | 3 | 3 | |
 SWITCHCRAFT/CONXALL | 3/8"-32 | 0.375 in | 9.53 mm | Brass | Brass | Polyester Glass Filled | Tin | Black Silver | 1 Nut 1 Washer 3 pcs - 1 Connector | Mounting Hardware Thread Lock | Stereo (3 Conductor TRS) | Female | Unshielded | Panel Mount Through Hole | Phone Jack | 0.25 in | 6.35 mm | Solder | 3 | 3 |
