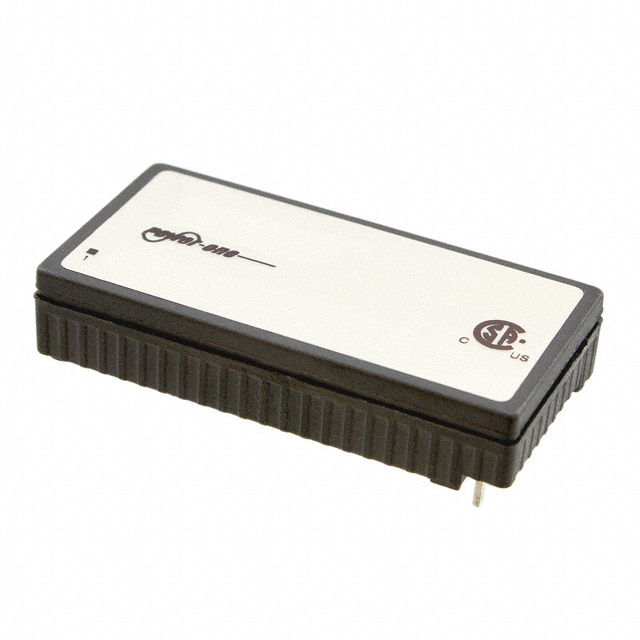

110IMX7 Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 6.1W 60-150V 5.1V 1.2A

Part	Features	Power (Watts)	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Voltage - Output 1	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Type	Mounting Type	Applications	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Output 2	Current - Output (Max)
Bel Fuse Inc. 110IMX7-05-8G	OCP OTP OVP Remote On/Off SCP UVLO	7 W	80 %	25.4 mm	50.8 mm	1 "	0.41 in	2 in	10.4 mm	14-DIP Module	5.1 V	2500 V	85 °C	-40 C	1	1.2 A	150 V	Isolated Module Conformal Coated	Through Hole	ITE (Commercial) Railway	60 V
Bel Fuse Inc. 110IMX7-05-05-8G	OCP OTP OVP Remote On/Off SCP UVLO	7 W	80 %	25.4 mm	50.8 mm	1 "	0.41 in	2 in	10.4 mm	14-DIP Module 9 Leads	5 V	2500 V	85 °C	-40 °C	2	700 mA	150 V	Isolated Module Conformal Coated	Through Hole	ITE (Commercial) Railway	60 V	700 mA	5 V
Bel Fuse Inc. 110IMX7-12-12-8G	OCP OTP OVP Remote On/Off SCP UVLO	7.2 W	83 %	25.4 mm	50.8 mm	1 "	0.41 in	2 in	10.4 mm	14-DIP Module 9 Leads	12 V	2500 V	85 °C	-40 °C	2	0.3 A	150 V	Isolated Module Conformal Coated	Through Hole	ITE (Commercial) Railway	60 V		12 V
Bel Fuse Inc. 110IMX7-15-15-8G	OCP OTP OVP Remote On/Off SCP UVLO	7 W	84 %	25.4 mm	50.8 mm	1 "	0.41 in	2 in	10.4 mm	14-DIP Module	15 V	2500 V	85 °C	-40 C	2		150 V	Isolated Module Conformal Coated	Through Hole	ITE (Commercial) Railway	60 V		15 V	240 mA
Bel Fuse Inc. 110IMX7-12-12-8	OCP OTP OVP Remote On/Off SCP UVLO	7 W	80 %	25.4 mm	50.8 mm	1 "	0.41 in	2 in	10.4 mm	14-DIP Module	12 V	2500 V	85 °C	-40 C	2	0.3 A	150 V	Isolated Module Conformal Coated	Through Hole	ITE (Commercial) Railway	60 V		12 V
