HS2C4M Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

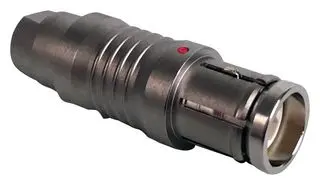

CIRCULAR CONNECTOR, DURA-PULL HS SERIES, CABLE MOUNT PLUG, 4 CONTACTS, CRIMP / SOLDER PIN
| Part | Shielding | Shell Finish | Number of Positions | Termination | Applications | Color | Insert Material | Orientation | Ingress Protection | Mounting Type | Primary Material | Contact Material | Contact Finish - Mating | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Shell Material | Fastening Type | Material Flammability Rating | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Shielded | Electroless Nickel | 4 | Crimp Solder Cup | Agriculture Audio General Medical Testing Equipment & Measurement | Silver | Liquid Crystal Polymer (LCP) | Keyed | IP66 IP67 IP68 | Free Hanging (In-Line) | Metal | Copper Alloy | Gold | 4.57 mm | 0.18 " | 5.49 mm | 0.216 in | Copper Alloy | Push-Pull | UL94 HF-1 | Plug Male Pins | -40 C | 135 °C | 125 VAC |
