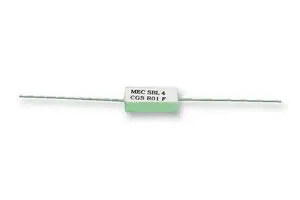

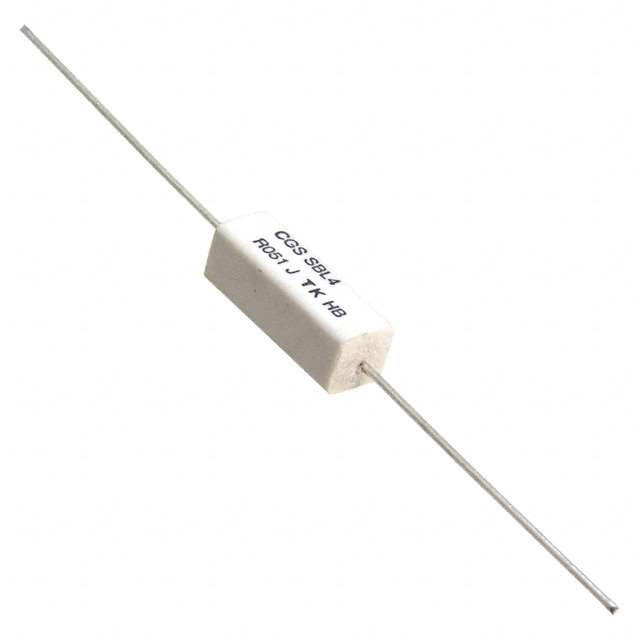

CGS SBL Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CURRENT SENSE RESISTOR, SBL SERIES, 0.022 OHM, SBL SERIES, 4 W, WIREWOUND, AXIAL LEADED, ± 5%

Part	Supplier Device Package	Package / Case	Resistance	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Number of Terminations [custom]	Temperature Coefficient	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features	Power (Watts)	Temperature Coefficient
TE Connectivity AMP Connectors SBL4R022J	Axial	Axial	22 mOhms	5 %	-55 C	250 °C	2	350 ppm/°C	0.709 "	6.4 mm	0.252 in	18 mm	0.252 in	Current Sense Non-Inductive	4 W
TE Connectivity AMP Connectors SBL4R022F	Axial	Axial	22 mOhms	1 %	-55 C	250 °C	2	350 ppm/°C	0.709 "	6.4 mm	0.252 in	18 mm	0.252 in	Current Sense Non-Inductive	4 W
TE Connectivity AMP Connectors SBL4R015J	Axial	Axial	15 mOhms	5 %	-55 C	250 °C	2	280 ppm/°C	0.709 "	6.4 mm	0.252 in	18 mm	0.252 in	Current Sense Non-Inductive	4 W
TE Connectivity AMP Connectors SBL4R015F	Axial	Axial	15 mOhms	1 %	-55 C	250 °C	2	280 ppm/°C	0.709 "	6.4 mm	0.252 in	18 mm	0.252 in	Current Sense Non-Inductive	4 W
TE Connectivity AMP Connectors SBL4R004F	Axial	Axial	4 mOhms	1 %	-55 C	250 °C	2	950 ppm/°C	0.709 "	6.4 mm	0.252 in	18 mm	0.252 in	Current Sense Non-Inductive	4 W
TE Connectivity AMP Connectors SBL4R047J	Axial	Axial	47 mOhms	5 %	-55 C	250 °C	2		0.709 "	6.4 mm	0.252 in	18 mm	0.252 in	Current Sense Non-Inductive	4 W	±245ppm/°C
TE Connectivity AMP Connectors SBL4R018J	Axial	Axial	18 mOhms	5 %	-55 C	250 °C	2	240 ppm/°C	0.709 "	6.4 mm	0.252 in	18 mm	0.252 in	Current Sense Non-Inductive	4 W
TE Connectivity AMP Connectors SBL4R007F	Axial	Axial	7 mOhms	1 %	-55 C	250 °C	2	950 ppm/°C	0.709 "	6.4 mm	0.252 in	18 mm	0.252 in	Current Sense Non-Inductive	4 W
TE Connectivity AMP Connectors SBL4R01F	Axial	Axial	10 mOhms	1 %	-55 C	250 °C	2	450 ppm/°C	0.709 "	6.4 mm	0.252 in	18 mm	0.252 in	Current Sense Non-Inductive	4 W
TE Connectivity AMP Connectors SBL4R005J	Axial	Axial	5 mOhms	5 %	-55 C	250 °C	2	950 ppm/°C	0.709 "	6.4 mm	0.252 in	18 mm	0.252 in	Current Sense Non-Inductive	4 W
