CGS TLRP Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

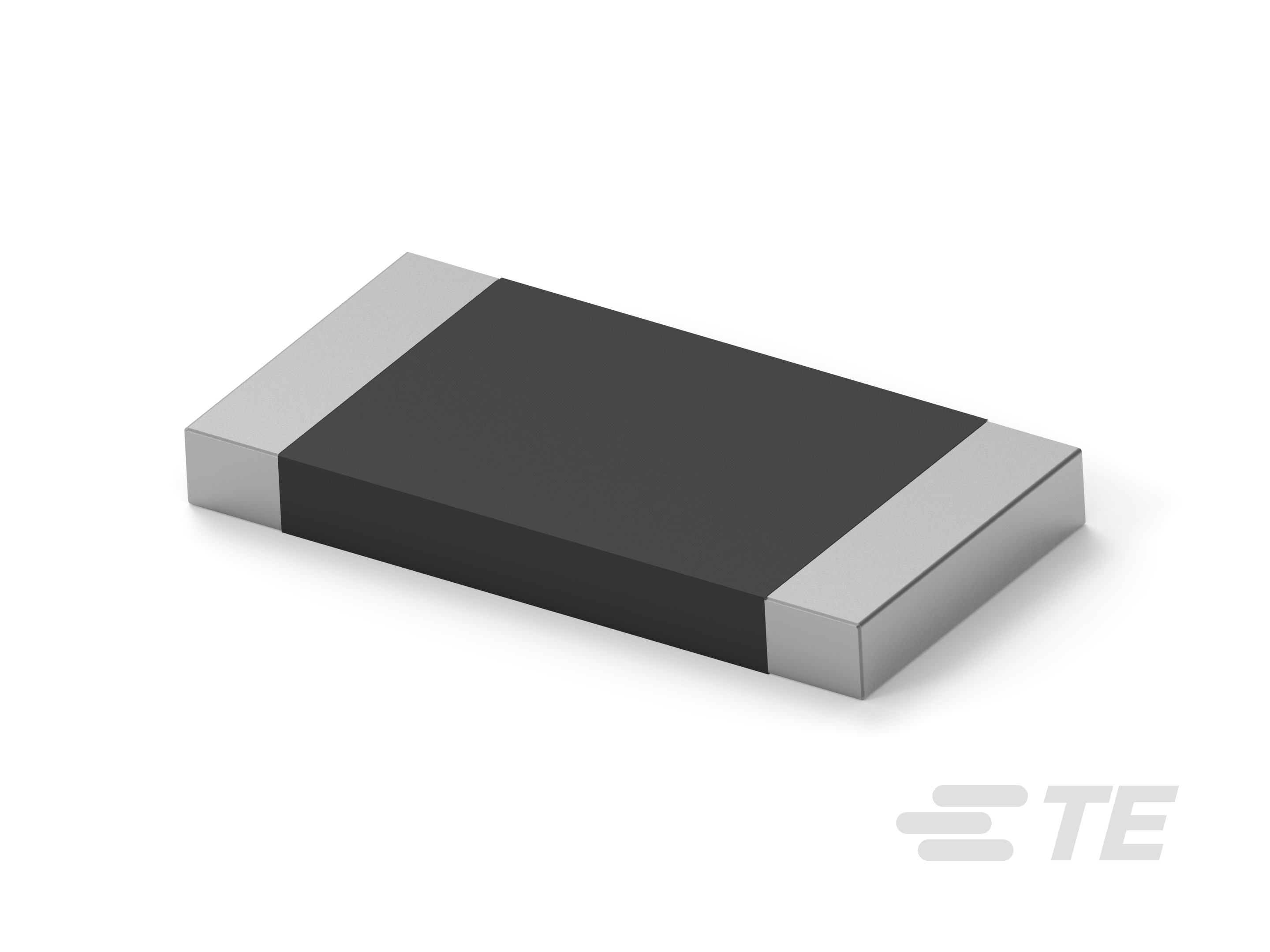

SMD CURRENT SENSE RESISTOR, 0.075 OHM, TLRP SERIES, 2512 [6432 METRIC], 2 W, ± 1%, METAL STRIP

...

Part	Ratings	Package / Case	Tolerance	Power (Watts)	Supplier Device Package	Package / Case	Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Temperature Coefficient	Composition	Number of Terminations [custom]	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Supplier Device Package
TE Connectivity AMP Connectors TLRP3A20DR075FTE	AEC-Q200	2512 2512 (6432 Metric)	1 %	2 W	2512	6332 Metric	75 mOhms	170 °C	-55 C	0.035 in	0.9 mm	50 ppm/░C	Metal Element	2	Anti-Sulfur Automotive AEC-Q200 Current Sense
TE Connectivity AMP Connectors TLRP3A20DR091FTE		2512	1 %	2 W	2512	6332 Metric	91 mOhms	170 °C	-55 C	0.035 in	0.9 mm	50 ppm/░C	Metal Element	2	Anti-Sulfur Automotive AEC-Q200 Current Sense

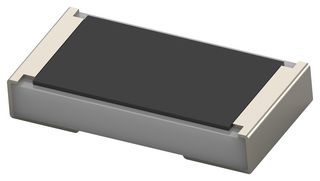

TE Connectivity AMP Connectors TLRP2H20WR010FTE		2010 (5025 Metric)	1 %	2 W	2010		10 mOhms	170 °C	-55 C			75 ppm/°C	Metal Element	2	Anti-Sulfur Automotive AEC-Q200 Current Sense	0.7 mm	0.028 "	0.197 in	5 mm	2.4 mm	0.094 in
TE Connectivity AMP Connectors TLRP3A20WR035FTE	AEC-Q200	2512 2512 (6432 Metric)	1 %	2 W	2512	6332 Metric	35 mOhms	170 °C	-55 C	0.035 in	0.9 mm	75 ppm/°C	Metal Element	2	Anti-Sulfur Automotive AEC-Q200 Current Sense
TE Connectivity AMP Connectors TLRP3A30DR180FTE		2512	1 %	3 W	2512	6332 Metric	0.18 Ohms	170 °C	-55 C	0.035 in	0.9 mm	50 ppm/░C	Metal Element	2	Anti-Sulfur Automotive AEC-Q200 Current Sense
TE Connectivity AMP Connectors TLRP2B10DR012FTD		1206 (3216 Metric)	1 %	1 W			12 mOhms	170 °C	-55 C	0.026 in	0.65 mm	50 ppm/░C	Metal Element	2	Anti-Sulfur Automotive AEC-Q200 Current Sense			0.124 "	3.15 mm	1.45 mm	0.057 in	1206
TE Connectivity AMP Connectors TLRP3A30WR005FTE		2512	1 %	3 W	2512	6332 Metric	5 mOhms	170 °C	-55 C	0.035 in	0.9 mm	75 ppm/°C	Metal Element	2	Anti-Sulfur Automotive AEC-Q200 Current Sense
TE Connectivity AMP Connectors TLRP3A30CR018FTE		2512	1 %	3 W	2512	6332 Metric	18 mOhms	170 °C	-55 C	0.035 in	0.9 mm	25 ppm/°C	Metal Element	2	Anti-Sulfur Automotive AEC-Q200 Current Sense
TE Connectivity AMP Connectors TLRP3A30DR040FTE	AEC-Q200	2512 2512 (6432 Metric)	1 %	3 W	2512	6332 Metric		170 °C	-55 C	0.035 in	0.9 mm	50 ppm/░C	Metal Element	2	Anti-Sulfur Automotive AEC-Q200 Current Sense
TE Connectivity AMP Connectors TLRP3A20CR200FTE		2512	1 %	2 W	2512	6332 Metric	200 mOhms	170 °C	-55 C	0.035 in	0.9 mm	25 ppm/°C	Metal Element	2	Anti-Sulfur Automotive AEC-Q200 Current Sense
