ZX75BP Series

Catalog

SIGNAL CONDITIONING CERAMIC RESONATOR BAND PASS FILTER, 875 - 1010 MHZ, 50 OHM

Part	Insertion Loss	Frequency	Mounting Type	Filter Type	Bandwidth	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [Max] [z]	Height (Max) [Max] [z]
Mini-Circuits ZX75BP-942-S+	2.5 dB	942 MHz	Free Hanging (In-Line)	Band Pass	135 MHz	F and M Inline SMA Connection	19.05 mm	1.2 in	30.48 mm	0.75 in	0.49 in	12.45 mm
Mini-Circuits ZX75BP-1090-S+	2 dB	1.09 GHz	Free Hanging (In-Line)	Band Pass	60 MHz	F and M Inline SMA Connection	19.05 mm	1.2 in	30.48 mm	0.75 in	0.49 in	12.45 mm

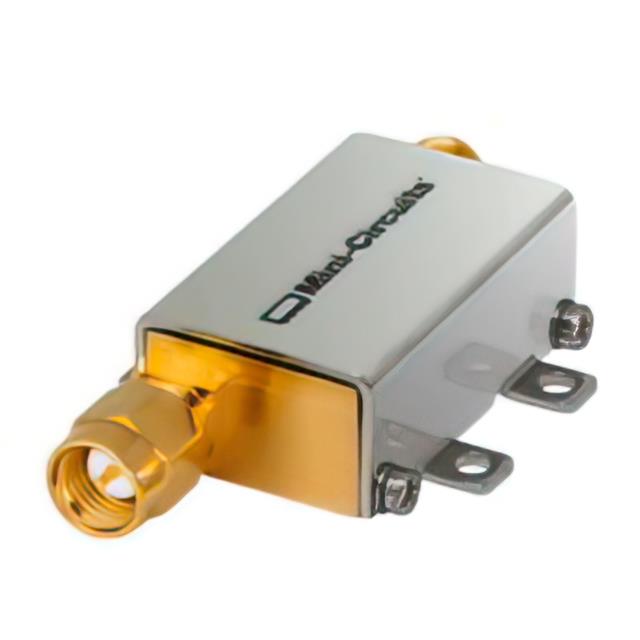

Mini-Circuits ZX75BP-A1060-S+	2 dB	1.06 GHz	Chassis Mount	Band Pass	90 MHz	Module SMA Connectors	19.05 mm	1.2 in	30.48 mm	0.75 in	0.49 in	12.45 mm
