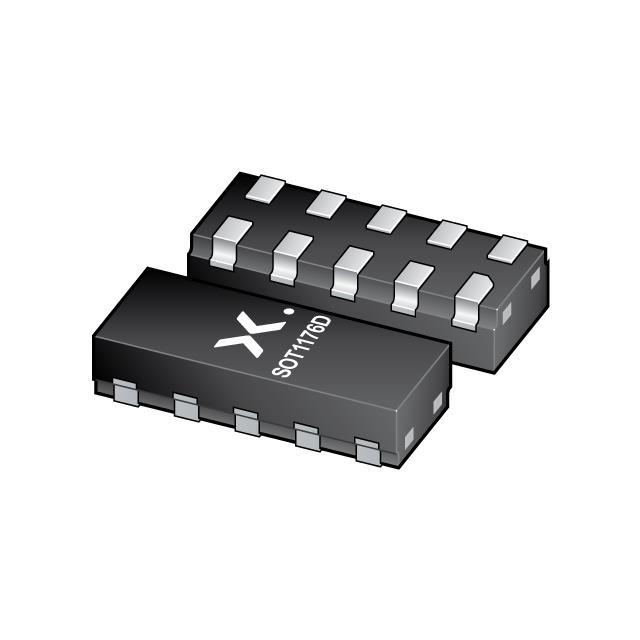

PESD4USB3BBTTS-Q Series

Extremely low capacitance bidirectional ESD protection diode array

Catalog

Extremely low capacitance bidirectional ESD protection diode array

Part	Supplier Device Package	Voltage - Reverse Standoff (Typ)	Package / Case	Voltage - Breakdown (Min) [Min]	Qualification	Power Line Protection	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Clamping (Max) @ Ipp	Type	Applications	Capacitance @ Frequency	Bidirectional Channels	Grade	Current - Peak Pulse (10/1000µs)	Mounting Type
Nexperia USA Inc. PESD4USB3BBTTS-QX	DFN2510D-10	3.3 V	10-WFDFN	5.5 V	AEC-Q101		-55 °C	150 °C	5.2 V	Zener	HDMI USB	0.23 pF	4	Automotive	6.5 A	Surface Mount Wettable Flank

Catalog

Extremely low capacitance bidirectional ESD protection diode array

Description

This bidirectional ESD protection device is designed to protect high-speed interfaces such as SuperSpeed USB 3.2, HDMI, DisplayPort, external Serial Advanced Technology Attachment (eSATA), Low Voltage Differential Signaling (LVDS), and Gigabit Multimedia Serial Link (GMSL) Serializer/Deserializer (SerDes) against ElectroStatic Discharge (ESD).
