UTP62 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLG HSG FMALE 48POS INLINE

Part	Contact Shape	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Orientation	Fastening Type	Note	Contact Size	Contact Type	Connector Type	Type	Material Flammability Rating	Features	Number of Positions	Mounting Type	Shielding	Housing Color	Operating Temperature (Max)	Operating Temperature (Min)	Shell Material	Shell Size - Insert Length	Shell Size - Insert Width	Position Types

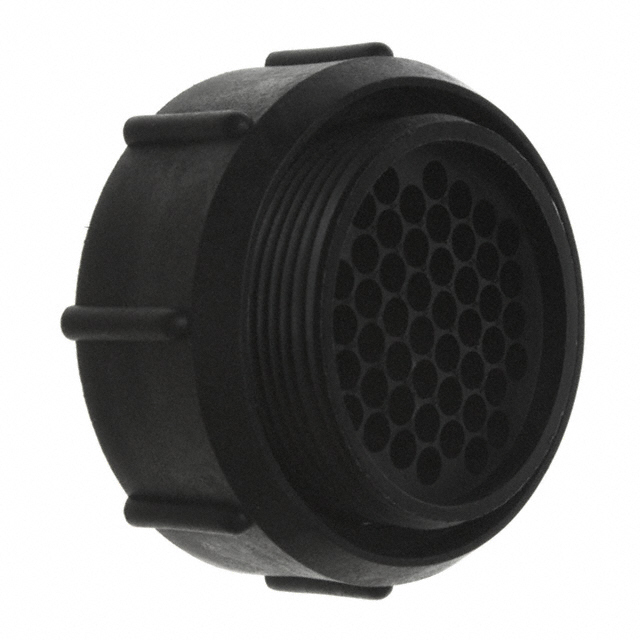

Amphenol Aerospace Operations UTP62448S	Circular	48	24	N (Normal)	Bayonet Lock	Contacts Not Included	16 S	Crimp	Plug Housing	For Female Sockets	UL94 V-0	Coupling Nut	48	Free Hanging (In-Line)	Unshielded	Black	125 °C	-25 °C	Glass Filled Polyester
Amphenol Aerospace Operations UTP6247P	Circular			N (Normal)	Bayonet Lock	Contacts Not Included	8 16	Crimp	Plug Housing	For Male Pins	UL94 V-0	Coupling Nut	9	Free Hanging (In-Line)	Unshielded	Black	125 °C	-25 °C	Glass Filled Polyester	24 mm	7 mm	PE

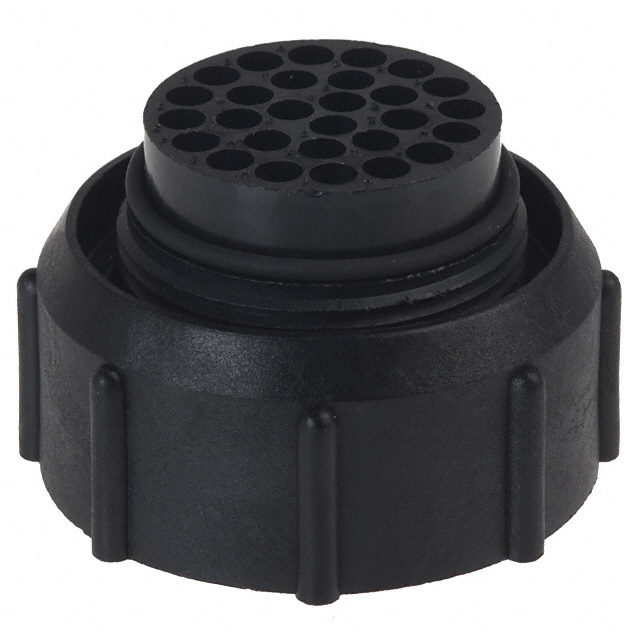

Amphenol Aerospace Operations UTP62028P	Circular	28	20	N (Normal)	Bayonet Lock	Contacts Not Included	16 S	Crimp	Plug Housing	For Male Pins	UL94 V-0	Coupling Nut	28	Free Hanging (In-Line)	Unshielded	Black	125 °C	-25 °C	Glass Filled Polyester

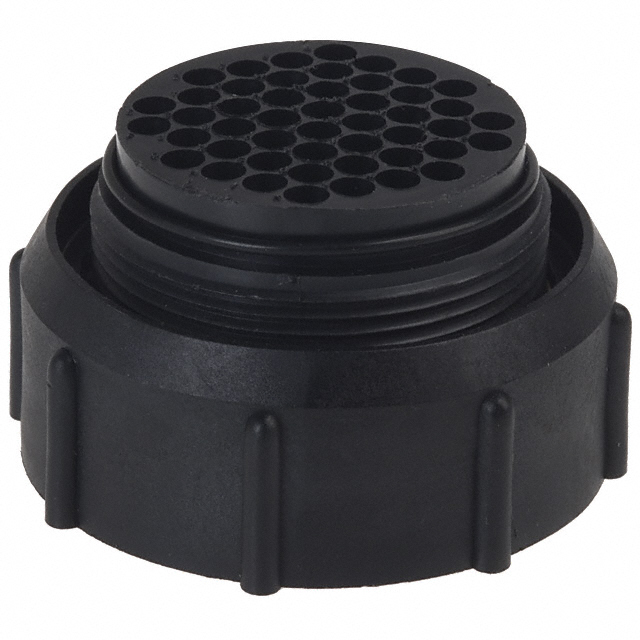

Amphenol Aerospace Operations UTP62448P	Circular	48	24	N (Normal)	Bayonet Lock	Contacts Not Included	16 S	Crimp	Plug Housing	For Male Pins	UL94 V-0	Coupling Nut	48	Free Hanging (In-Line)	Unshielded	Black	125 °C	-25 °C	Glass Filled Polyester

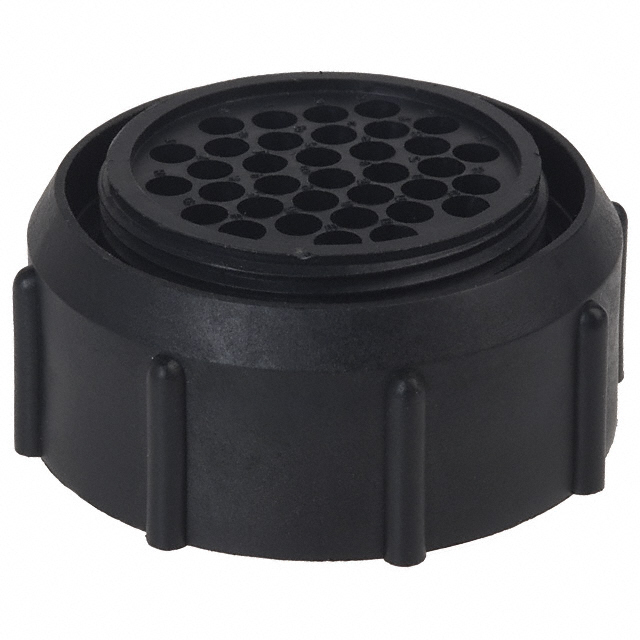

Amphenol Aerospace Operations UTP62235S	Circular	35	22	N (Normal)	Bayonet Lock	Contacts Not Included	16 S	Crimp	Plug Housing	For Female Sockets	UL94 V-0	Coupling Nut	35	Free Hanging (In-Line)	Unshielded	Black	125 °C	-25 °C	Glass Filled Polyester
Amphenol Aerospace Operations UTP624-7SR	Circular			N (Normal)	Bayonet Lock	Contacts Not Included	8 16	Crimp	Plug Housing	For Female Sockets	UL94 V-0	Coupling Nut	9	Free Hanging (In-Line)	Unshielded	Black	125 °C	-25 °C	Glass Filled Polyester	24 mm	7 mm
Amphenol Aerospace Operations UTP62411S	Circular			N (Normal)	Bayonet Lock	Contacts Not Included	8 16	Crimp	Plug Housing	For Female Sockets	UL94 V-0	Coupling Nut	11	Free Hanging (In-Line)	Unshielded	Black	125 °C	-25 °C	Glass Filled Polyester	24 mm	11 mm

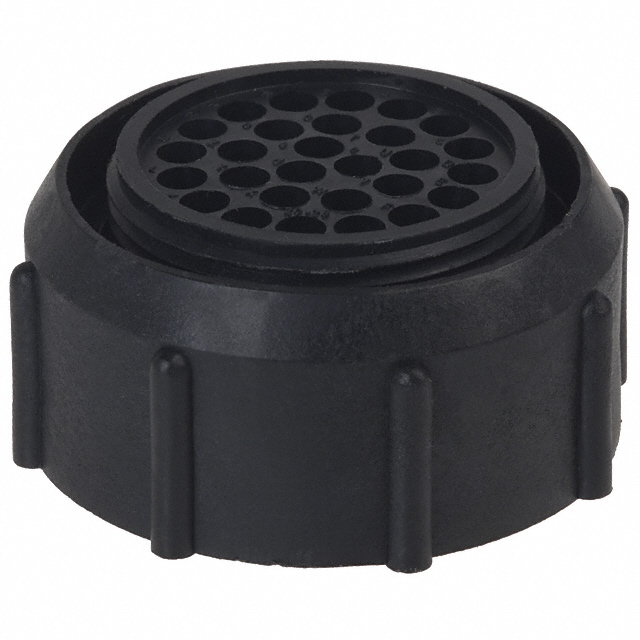

Amphenol Aerospace Operations UTP62028S	Circular	28	20	N (Normal)	Bayonet Lock	Contacts Not Included	16 S	Crimp	Plug Housing	For Female Sockets	UL94 V-0	Coupling Nut	28	Free Hanging (In-Line)	Unshielded	Black	125 °C	-25 °C	Glass Filled Polyester

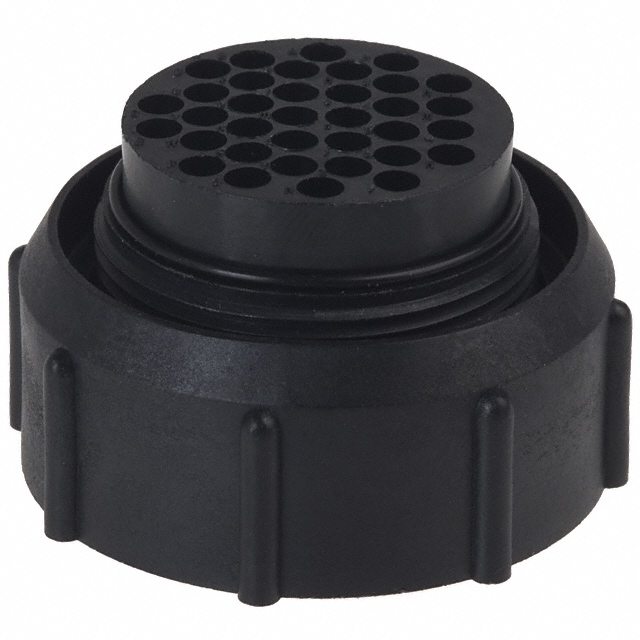

Amphenol Aerospace Operations UTP62235P	Circular	35	22	N (Normal)	Bayonet Lock	Contacts Not Included	16 S	Crimp	Plug Housing	For Male Pins	UL94 V-0	Coupling Nut	35	Free Hanging (In-Line)	Unshielded	Black	125 °C	-25 °C	Glass Filled Polyester
