SPP07N Series

Manufacturer: INFINEON

Catalog

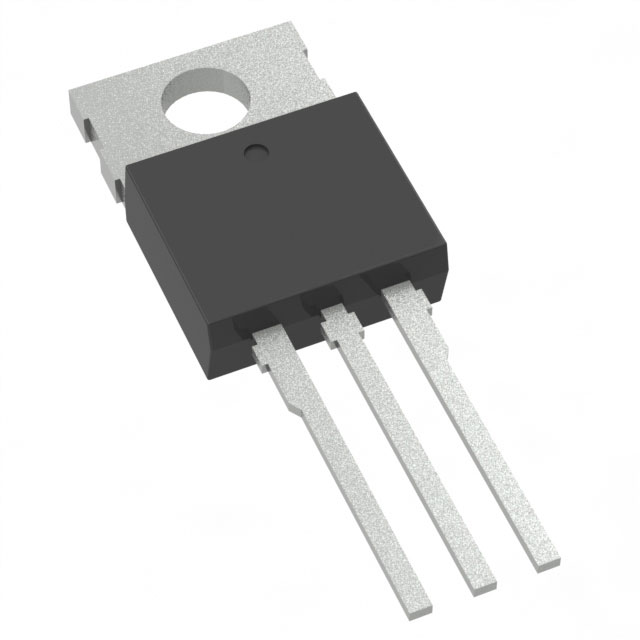

MOSFET N-CH 650V 6.6A TO220-3

Part	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max) @ Id, Vgs	Technology	Input Capacitance (Ciss) (Max) @ Vds [Max]	Power Dissipation (Max)	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Vgs (Max)	FET Type	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id	Package / Case	Current - Continuous Drain (Id) @ 25°C	Mounting Type	Gate Charge (Qg) (Max) @ Vgs
INFINEON SPP07N60CFDHKSA1	10 V	700 mOhm	MOSFET (Metal Oxide)	790 pF	83 W	PG-TO220-3-1	150 °C	-55 °C	20 V	N-Channel	650 V	5 V	TO-220-3	6.6 A	Through Hole
INFINEON SPP07N60C3HKSA1	10 V	600 mOhm	MOSFET (Metal Oxide)	790 pF	83 W	PG-TO220-3	150 °C	-55 °C	20 V	N-Channel	650 V	3.9 V	TO-220-3	7.3 A	Through Hole	27 nC
INFINEON SPP07N65C3XKSA1	10 V	600 mOhm	MOSFET (Metal Oxide)	790 pF	83 W	PG-TO220-3-1	150 °C	-55 °C	20 V	N-Channel	650 V	3.9 V	TO-220-3	7.3 A	Through Hole	27 nC
