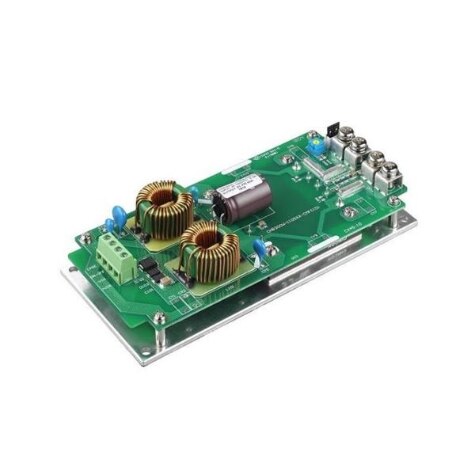

CHB200W-110SXX-CMFC( Series

Isolated DC/DC Converters - Chassis Mount 200W 43-160Vi 48Vo 4.2A w/cover

Manufacturer: Cincon Electronics Co. LTD

Catalog

Isolated DC/DC Converters - Chassis Mount 200W 43-160Vi 48Vo 4.2A w/cover

Catalog

Isolated DC/DC Converters - Chassis Mount 200W 43-160Vi 48Vo 4.2A w/cover

Part	Type	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Power (Watts)	Standard Number	Current - Output (Max) [Max]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Voltage - Input (Min) [Min]	Approval Agency	Voltage - Input (Max) [Max]	Applications	Voltage - Isolation
Cincon Electronics Co. LTD CHB200W-110S05-CMFD	Enclosed	Chassis Mount	1.57 "	165 mm	40 mm	78.6 mm	6.5 in	3.09 in	5 V	200 Watts	60950-1 62368-1	40 A	1	-40 °C	100 °C	87.5 %	43 V	CE UKCA	160 V	ITE (Commercial)	3000 V
Cincon Electronics Co. LTD CHB200W-110S48-CMFD	Enclosed	Chassis Mount	1.57 "	165 mm	40 mm	78.6 mm	6.5 in	3.09 in	48 V	202 W	60950-1 62368-1	4.2 A	1	-40 °C	100 °C	90.5 %	43 V	CE UKCA	160 V	ITE (Commercial)	3000 V
Cincon Electronics Co. LTD CHB200W-110S48-CMFC	Open Frame	Chassis Mount	1.52 in	165 mm	38.5 mm	76.2 mm	6.5 in	3 "	48 V	202 W	60950-1 62368-1	4.2 A	1	-40 °C	100 °C	90.5 %	43 V	CE UKCA	160 V	ITE (Commercial)	3000 V
Cincon Electronics Co. LTD CHB200W-110S12-CMFD	Enclosed	Chassis Mount	1.57 "	165 mm	40 mm	78.6 mm	6.5 in	3.09 in	12 V	200 Watts	60950-1 62368-1	16.7 A	1	-40 °C	100 °C	90.5 %	43 V	CE UKCA	160 V	ITE (Commercial)	3000 V
Cincon Electronics Co. LTD CHB200W-110S24-CMFC	Open Frame	Chassis Mount	1.52 in	165 mm	38.5 mm	76.2 mm	6.5 in	3 "	24 V	199 W	60950-1 62368-1	8.3 A	1	-40 °C	100 °C	89 %	43 V	CE UKCA	160 V	ITE (Commercial)	3000 V
Cincon Electronics Co. LTD CHB200W-110S28-CMFC	Open Frame	Chassis Mount	1.52 in	165 mm	38.5 mm	76.2 mm	6.5 in	3 "	28 V	200 Watts	60950-1 62368-1	7.14 A	1	-40 °C	100 °C	89 %	43 V	CE UKCA	160 V	ITE (Commercial)	3000 V
Cincon Electronics Co. LTD CHB200W-110S12-CMFC	Open Frame	Chassis Mount	1.52 in	165 mm	38.5 mm	76.2 mm	6.5 in	3 "	12 V	200 Watts	60950-1 62368-1	16.7 A	1	-40 °C	100 °C	90.5 %	43 V	CE UKCA	160 V	ITE (Commercial)	3000 V
Cincon Electronics Co. LTD CHB200W-110S28-CMFD	Enclosed	Chassis Mount	1.57 "	165 mm	40 mm	78.6 mm	6.5 in	3.09 in	28 V	200 Watts	60950-1 62368-1	7.14 A	1	-40 °C	100 °C	89 %	43 V	CE UKCA	160 V	ITE (Commercial)	3000 V
Cincon Electronics Co. LTD CHB200W-110S05-CMFC	Open Frame	Chassis Mount	1.52 in	165 mm	38.5 mm	76.2 mm	6.5 in	3 "	5 V	200 Watts	60950-1 62368-1	40 A	1	-40 °C	100 °C	87.5 %	43 V	CE UKCA	160 V	ITE (Commercial)	3000 V
Cincon Electronics Co. LTD CHB200W-110S24-CMFD	Enclosed	Chassis Mount	1.57 "	165 mm	40 mm	78.6 mm	6.5 in	3.09 in	24 V	199 W	60950-1 62368-1	8.3 A	1	-40 °C	100 °C	89 %	43 V	CE UKCA	160 V	ITE (Commercial)	3000 V
