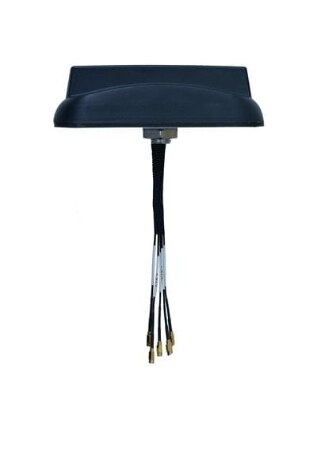

VFP69383 Series

Antennas VEHICULAR MIMO FIN,5 PORTS, 2x LTE, 2x WiFi, GNSS, BLACK

Manufacturer: TE Connectivity AMP Connectors

Catalog

Antennas VEHICULAR MIMO FIN,5 PORTS, 2x LTE, 2x WiFi, GNSS, BLACK

Catalog

Antennas VEHICULAR MIMO FIN,5 PORTS, 2x LTE, 2x WiFi, GNSS, BLACK

Part	VSWR	RF Family/Standard	Frequency Group	Number of Bands	Features	Frequency Range [Min]	Frequency Range [Max]	Antenna Type	Frequency (Center/Band)	Ingress Protection	Power - Max [Max]	Mounting Type	Applications	Height (Max) [z]	Height (Max) [z]	Gain
TE Connectivity AMP Connectors VFP69383B22JN-518J	2	Cellular General ISM Navigation WiFi	Wide Band	9	Cable - 5.18M LNA	1.559 GHz 1.574 GHz 1.598 GHz 1.69 GHz 2.4 GHz 4.9 GHz 698 MHz 824 MHz 880 MHz	1.563 GHz 1.576 GHz 1.605 GHz 2.5 GHz 3.8 GHz 6 GHz 806 MHz 894 MHz 960 MHz	Module	1.561 GHz 1.575 GHz 1.6015 GHz 2.45 GHz 2.745 GHz 5.45 GHz 752 MHz 859 MHz 920 MHz	IP67	10 W	Panel Mount	BeiDou GLONASS GPS ISM LTE Wi-Fi	48 mm	1.89 in	0.4 dBi 0.8 dBi 1.2 dBi 2 dBi 2.6 dBi 4 dBi 6.6 dBi
TE Connectivity AMP Connectors VFP69383B22JN-518J	2	Cellular General ISM Navigation WiFi	Wide Band	9	Cable - 5.18M LNA	1.559 GHz 1.574 GHz 1.598 GHz 1.69 GHz 2.4 GHz 4.9 GHz 698 MHz 824 MHz 880 MHz	1.563 GHz 1.576 GHz 1.605 GHz 2.5 GHz 3.8 GHz 6 GHz 806 MHz 894 MHz 960 MHz	Module	1.561 GHz 1.575 GHz 1.6015 GHz 2.45 GHz 2.745 GHz 5.45 GHz 752 MHz 859 MHz 920 MHz	IP67	10 W	Panel Mount	BeiDou GLONASS GPS ISM LTE Wi-Fi	48 mm	1.89 in	0.4 dBi 0.8 dBi 1.2 dBi 2 dBi 2.6 dBi 4 dBi 6.6 dBi
