SDC Series
Manufacturer: TDK Corporation
Beta
⌘K

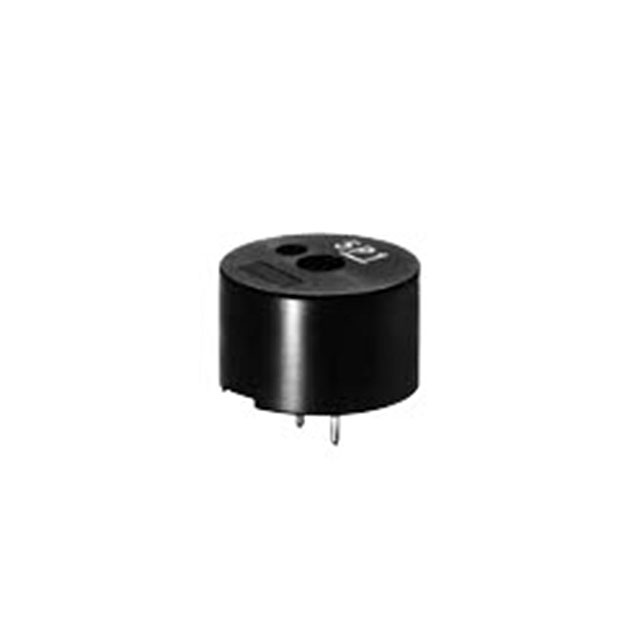

PIEZO BUZZERS & AUDIO INDICATORS 16X10MM 2.4KHZ 12VOLTS WITH OSC
| Part | Operating Mode | Termination | Voltage Range [Max] | Voltage Range [Min] | Driver Circuitry | Size / Dimension [diameter] | Size / Dimension [diameter] | Technology | Sound Pressure Level (SPL) | Input Type | Voltage - Rated | Current - Supply | Frequency | Operating Temperature [Max] | Operating Temperature [Min] | Port Location | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | Single Tone | PC Pins | 16 V | 8 V | Indicator Internally Driven | 0.63 in | 16 mm | Magnetic | 85 dB | DC | 12 VDC | 25 mA | 2.4 kHz | 70 °C | -10 °C | Top | Through Hole | 10 mm | 0.394 in |
