3282-9S Series

Catalog

CONNECTORS, CIRCULAR, SOCKET, MULTI-CON-X SERIES, 9 CONTACTS, CABLE #20 SOLDER

Part	Voltage Rating	Backshell Material, Plating	Shielding	Orientation	Ingress Protection	Primary Material	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Features	Current Rating (Amps)	Number of Positions	Contact Finish - Mating	Color	Fastening Type	Contact Material	Connector Type
SWITCHCRAFT/CONXALL 3282-9SG-330	600 V	Nylon Polyamide (PA)	Unshielded	Keyed	Weathertight	Plastic	0.32 in	0.3 in	7.62 mm	8.13 mm	115 °C	-40 C	Free Hanging (In-Line)	Backshell	5.6 A	9	Gold	Black	Bayonet Lock	Brass	Plug Female Sockets
SWITCHCRAFT/CONXALL 3282-9SG-528	600 V	Nylon Polyamide (PA)	Unshielded	Keyed	Weathertight	Plastic	0.29 in	0.28 in	7.11 mm	7.37 mm	115 °C	-40 C	Free Hanging (In-Line)	Backshell Cable Clamp	5.6 A	9	Gold	Black	Bayonet Lock	Brass	Plug Female Sockets
SWITCHCRAFT/CONXALL 3282-9SG-328	600 V	Nylon Polyamide (PA)	Unshielded	Keyed	Weathertight	Plastic	0.29 in	0.28 in	7.11 mm	7.37 mm	115 °C	-40 C	Free Hanging (In-Line)	Backshell	5.6 A	9	Gold	Black	Bayonet Lock	Brass	Plug Female Sockets
SWITCHCRAFT/CONXALL 3282-9SG-521	600 V	Nylon Polyamide (PA)	Unshielded	Keyed	Weathertight	Plastic	0.23 in	0.21 in	5.33 mm	5.84 mm	115 °C	-40 C	Free Hanging (In-Line)	Backshell Cable Clamp	5.6 A	9	Gold	Black	Bayonet Lock	Brass	Plug Female Sockets
SWITCHCRAFT/CONXALL 3282-9SG-524	600 V	Nylon Polyamide (PA)	Unshielded	Keyed	Weathertight	Plastic	0.27 "	0.24 "	6.1 mm	6.86 mm	115 °C	-40 C	Free Hanging (In-Line)	Backshell Cable Clamp	5.6 A	9	Gold	Black	Bayonet Lock	Brass	Plug Female Sockets
SWITCHCRAFT/CONXALL 3282-9SG-318	600 V	Nylon Polyamide (PA)	Unshielded	Keyed	Weathertight	Plastic	0.2 "	0.18 "	4.57 mm	5.08 mm	115 °C	-40 C	Free Hanging (In-Line)	Backshell	5.6 A	9	Gold	Black	Bayonet Lock	Brass	Plug Female Sockets
SWITCHCRAFT/CONXALL 3282-9SG-315	600 V	Nylon Polyamide (PA)	Unshielded	Keyed	Weathertight	Plastic	0.17 in	0.15 "	3.81 mm	4.32 mm	115 °C	-40 C	Free Hanging (In-Line)	Backshell	5.6 A	9	Gold	Black	Bayonet Lock	Brass	Plug Female Sockets

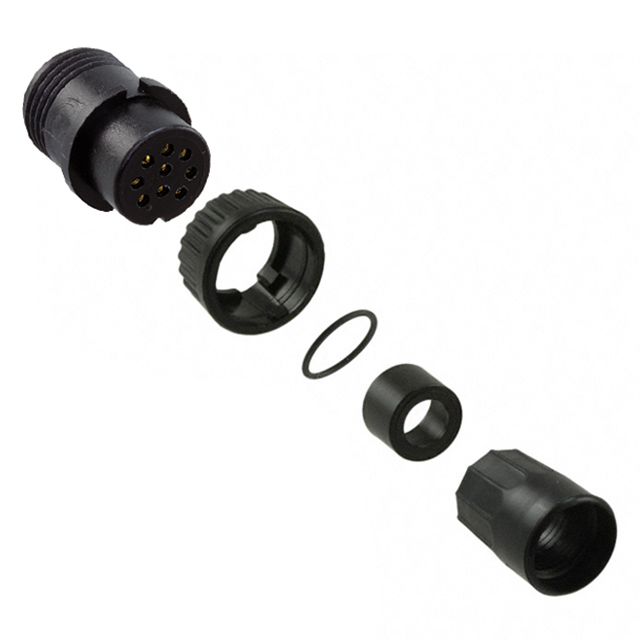

SWITCHCRAFT/CONXALL 3282-9SG-321	600 V	Nylon Polyamide (PA)	Unshielded	Keyed	Weathertight	Plastic	0.23 in	0.21 in	5.33 mm	5.84 mm	115 °C	-40 C	Free Hanging (In-Line)	Backshell	5.6 A	9	Gold	Black	Bayonet Lock	Brass	Plug Female Sockets
SWITCHCRAFT/CONXALL 3282-9SG-518	600 V	Nylon Polyamide (PA)	Unshielded	Keyed	Weathertight	Plastic	0.2 "	0.18 "	4.57 mm	5.08 mm	115 °C	-40 C	Free Hanging (In-Line)	Backshell Cable Clamp	5.6 A	9	Gold	Black	Bayonet Lock	Brass	Plug Female Sockets
SWITCHCRAFT/CONXALL 3282-9SG-530	600 V	Nylon Polyamide (PA)	Unshielded	Keyed	Weathertight	Plastic	0.32 in	0.3 in	7.62 mm	8.13 mm	115 °C	-40 C	Free Hanging (In-Line)	Backshell Cable Clamp	5.6 A	9	Gold	Black	Bayonet Lock	Brass	Plug Female Sockets
