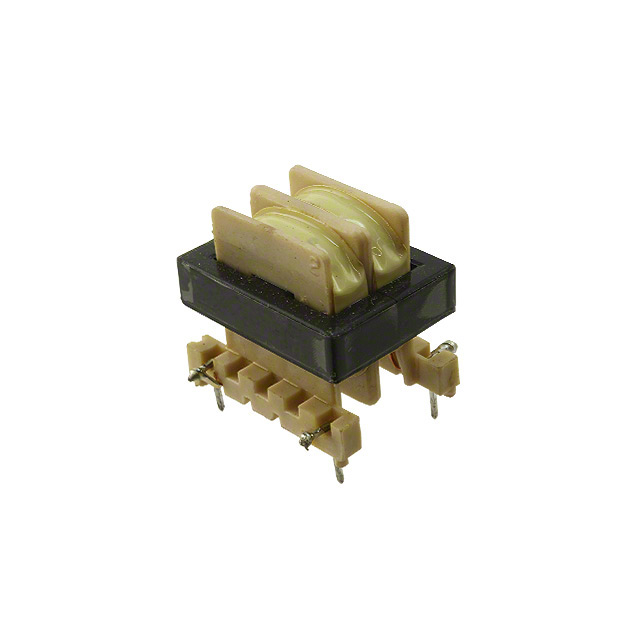

CME Series

Catalog

COMMON MODE CHOKES / FILTERS COMMON MODE INDUCTOR-43.6MHA.1.75ARMS/CME375-6

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current Rating (Max) [Max]	Height (Max) [z]	Height (Max) [z]	Filter Type	Inductance @ Frequency	DC Resistance (DCR) (Max) [Max]	Number of Lines	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Approval Agency	Voltage Rating - AC	Mounting Type
Triad Magnetics CME375-6	80 °C	-40 C	Vertical 4 PC Pin	1.75 A	29.97 mm	1.18 in	Power Line	43.6 mH	489 mOhm	2	38.1 mm	1.5 in	1.26 in	32 mm	CSA IEC UL VDE	250 V	Through Hole

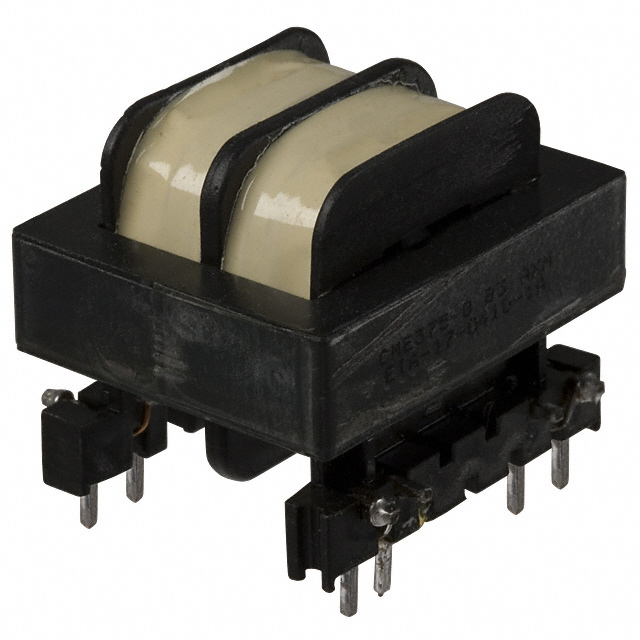

Triad Magnetics CME375-8	80 °C	-40 C	Vertical 4 PC Pin	1.1 A	29.97 mm	1.18 in	Power Line	111.6 mH	1.24 Ohm	2	38.1 mm	1.5 in	1.26 in	32 mm	CSA IEC UL VDE	250 V	Through Hole
Triad Magnetics CME2425-9	80 °C	-40 C	Vertical 4 PC Pin	400 mA	27.31 mm	1.075 in	Power Line	67.5 mH	2.02 Ohm	2	26.67 mm	1.05 "	1.05 in	26.67 mm	CSA IEC UL VDE	250 V	Through Hole
