RS Series
Manufacturer: Susumu
Beta
⌘K

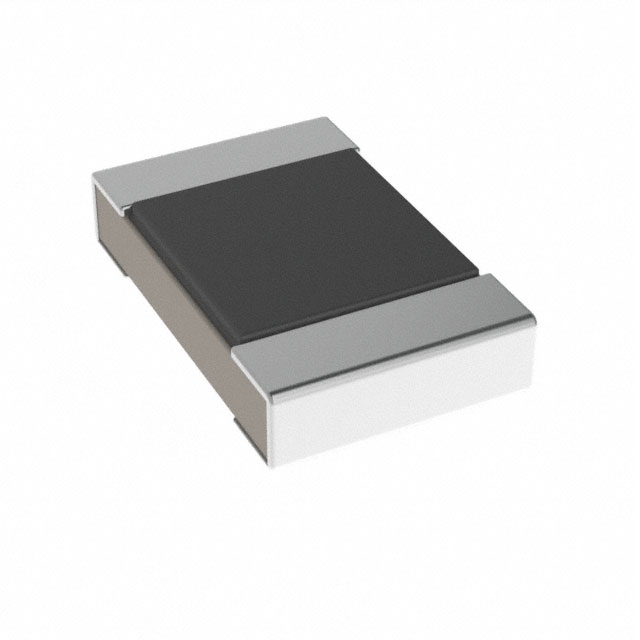

THIN FILM RESISTORS - SMD 0.125W 68OHM 0.5% 25PPM AEC Q200
| Part | Ratings | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Tolerance | Features | Power (Watts) | Power (Watts) | Package / Case | Number of Terminations [custom] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Temperature Coefficient | Composition | Resistance | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Susumu | AEC-Q200 | 2 mm | 1.25 mm | 0.049 " | 0.079 in | 0.5 % | Automotive AEC-Q200 | 0.125 W | 0.125 W | 0805 | 2 | 0.55 mm | 0.022 in | 155 C | -55 C | 25 ppm/°C | Thin Film | 68 Ohms | 0805 |
Susumu | AEC-Q200 | 2 mm | 1.25 mm | 0.049 " | 0.079 in | 0.5 % | Automotive AEC-Q200 | 0.125 W | 0.125 W | 0805 | 2 | 0.55 mm | 0.022 in | 155 C | -55 C | 25 ppm/°C | Thin Film | 470 Ohms | 0805 |
Susumu | AEC-Q200 | 2 mm | 1.25 mm | 0.049 " | 0.079 in | 0.5 % | Automotive AEC-Q200 | 0.125 W | 0.125 W | 0805 | 2 | 0.55 mm | 0.022 in | 155 C | -55 C | 25 ppm/°C | Thin Film | 100 kOhms | 0805 |
