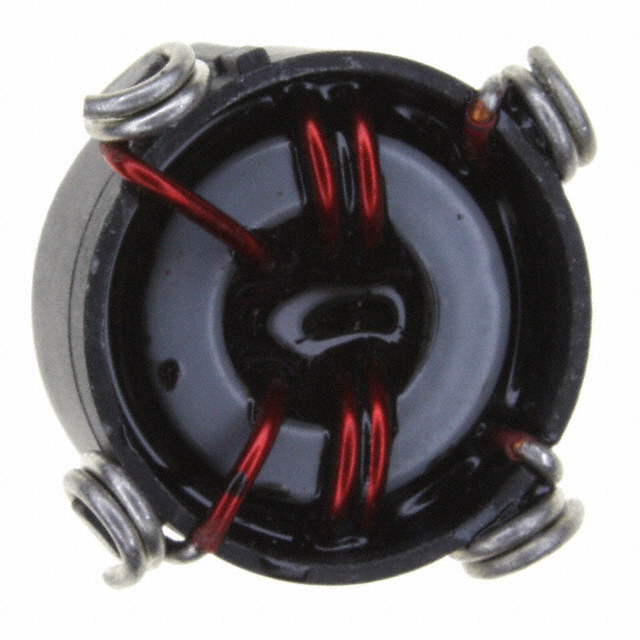

CM6296 Series
Manufacturer: Delevan
Beta
⌘K
COMMON MODE CHOKES / FILTERS 200UH 25% .008OHM CHOKE/ISOLATION SMT
| Part | Number of Lines | Package / Case | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | DC Resistance (DCR) (Max) [Max] | Current Rating (Max) [Max] | Mounting Type | Inductance @ Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Height (Max) [z] | Height (Max) [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delevan | 2 | Horizontal 4 PC Pad | 1.058 in | 26.87 mm | 26.87 mm | 1.058 in | 16 mOhm | 8.5 A | Surface Mount | 200 µH | -55 C | 125 °C | 10.74 mm | 0.423 in |
