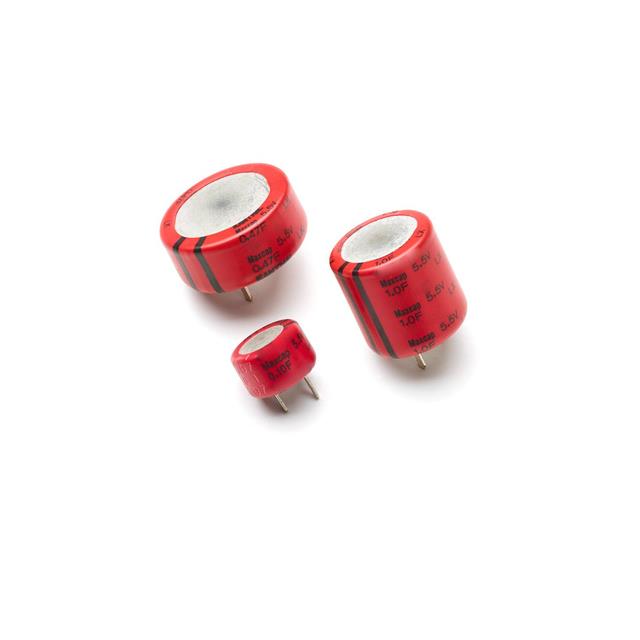

Maxcap Series

Manufacturer: Ohmite

Catalog

SUPERCAPACITORS / ULTRACAPACITORS 1.0F 5.5V 80%

Part	ESR (Equivalent Series Resistance)	Voltage - Rated	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Tolerance [Max]	Tolerance [Min]	Termination	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Ohmite LT055105A	60 Ohm	5.5 V	0.866 in	22 mm	1 F	85 °C	-40 C	Through Hole	80 %	-20 %	PC Pins	1000 Hrs	0.299 "	7.6 mm	21.5 mm	0.846 in	Can Radial
Ohmite LC055474A	65 Ohm	5.5 V			470 mF	70 °C	-25 °C	Through Hole	80 %	-20 %	PC Pins	1000 Hrs	0.201 in	5.1 mm			Can Radial	15 mm	0.591 "
Ohmite LK055473A	100 Ohm	5.5 V			47 mF	70 °C	-25 °C	Through Hole	80 %	-20 %	PC Pins	1000 Hrs	0.201 in	5.1 mm		0.512 in	Can Radial			13 mm	0.276 in	7 mm
