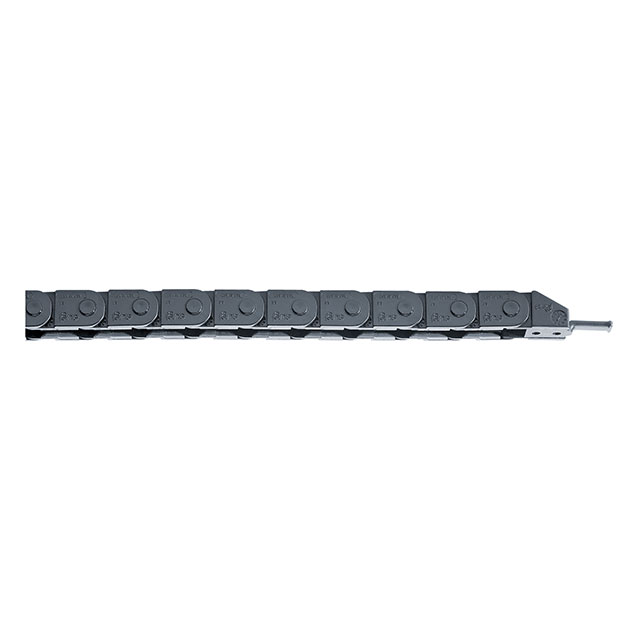

Z06-10 Series
Manufacturer: Igus
Beta
⌘K
CABLE CARRIER .59H X .65W 1=1FT
| Part | Minimum Bend Radius [Min] | Minimum Bend Radius [Min] [radius] | Cavity Width [y] | Cavity Width | Outer Height [z] | Outer Height [z] | Frame Type | Link Pitch | Link Pitch | Operating Temperature [Max] | Operating Temperature [Min] | Cavity Height | Cavity Height [z] | Loading Side | Outer Width [y] | Outer Width [y] | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Igus | 27.94 mm | 1.1 " | 0.39 in | 9.91 mm | 14.99 mm | 0.59 in | Open | 0.79 in | 20.07 mm | 80 °C | -40 C | 10.41 mm | 0.41 in | Inside and Outside Bend | 16.51 mm | 0.65 in | Igumid G |
