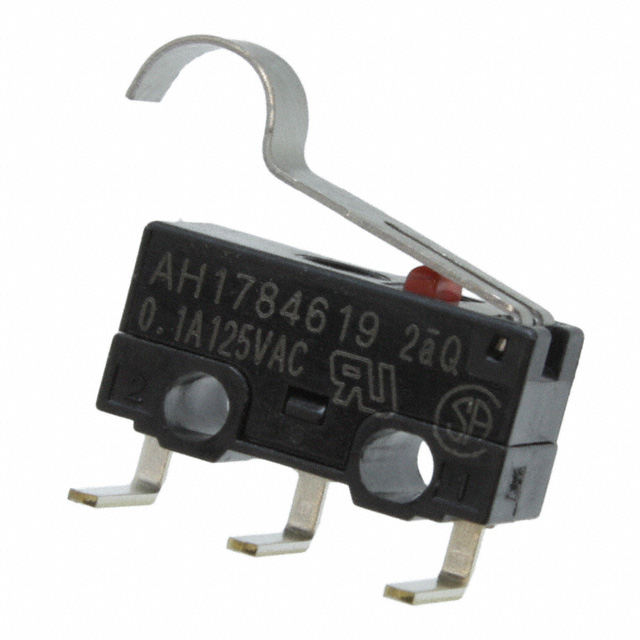

AH1784619 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
SWITCH SNAP ACT SPDT 0.1A 125V
| Part | Features | Actuator Type | Voltage Rating - DC | Differential Travel | Differential Travel | Voltage Rating - AC | Switch Function | Mounting Type | Overtravel [custom] | Overtravel [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Pretravel | Pretravel | Operating Position | Operating Position | Release Force | Operating Force | Electrical Life | Mechanical Life | Circuit | Termination Style | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | Actuator Mounted Right Side | Lever Simulated Roller | 30 V | 0.5 mm | 0.02 in | 125 V | On-Mom | Right Angle Through Hole | 0.5 mm | 0.02 " | 85 °C | -25 °C | 2.1 mm | 0.083 in | 9.5 mm | 0.374 " | 2.039 gf | 26 gf | 100000 Cycles | 1000000 Cycles | SPDT | PC Pin | 100 mA |
