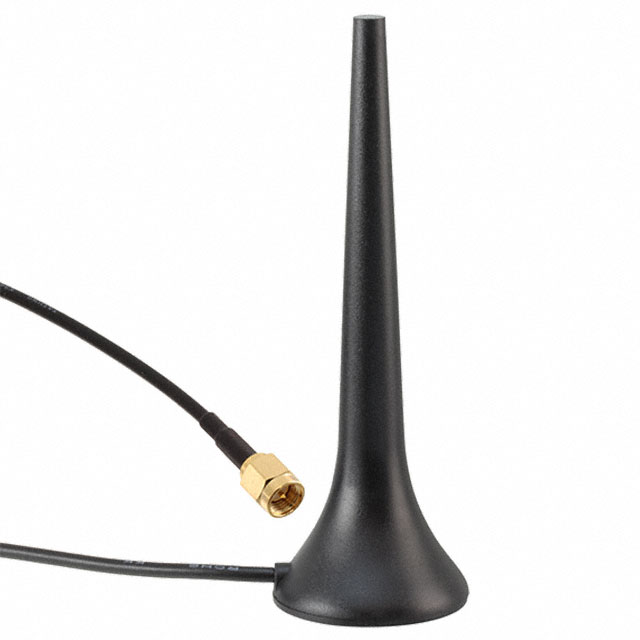

MIKE1A Series

Manufacturer: Siretta

Catalog

RF ANT 850MHZ/900MHZ WHIP STR

Part	Applications	VSWR	Frequency (Center/Band)	Gain	Number of Bands	RF Family/Standard	Antenna Type	Termination	Height (Max) [diameter]	Height (Max) [diameter]	Mounting Type

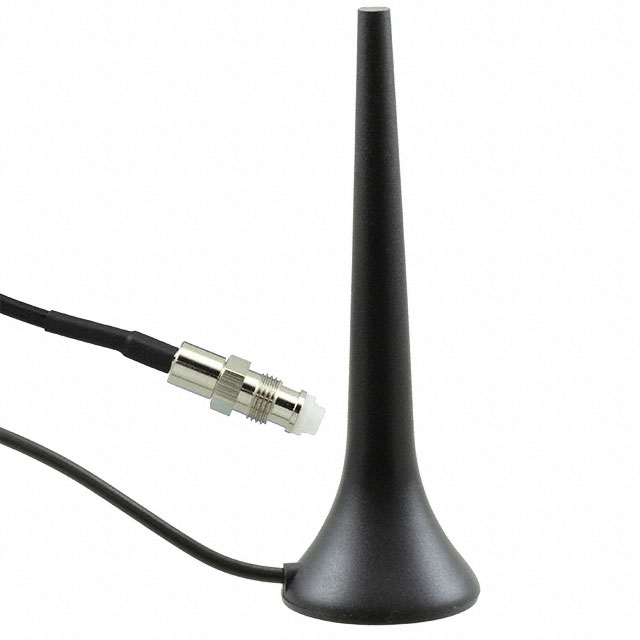

Siretta MIKE1A/2.5M/FMEF/S/S/20	GPRS GSM UMTS	1.5	1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 900 MHz	3 dBi	5	Cellular	Whip Straight	FME Female	1.339 in	34 mm	Magnetic
Siretta MIKE1A/5M/FMEF/S/S/20	GPRS GSM UMTS	1.5	1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 900 MHz	3 dBi	5	Cellular	Whip Straight	FME Female	1.339 in	34 mm	Magnetic
Siretta MIKE1A/1.2M/SMAM/S/S/20	GPRS GSM UMTS	1.5	1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 900 MHz	3 dBi	5	Cellular	Whip Straight		1.339 in	34 mm	Magnetic

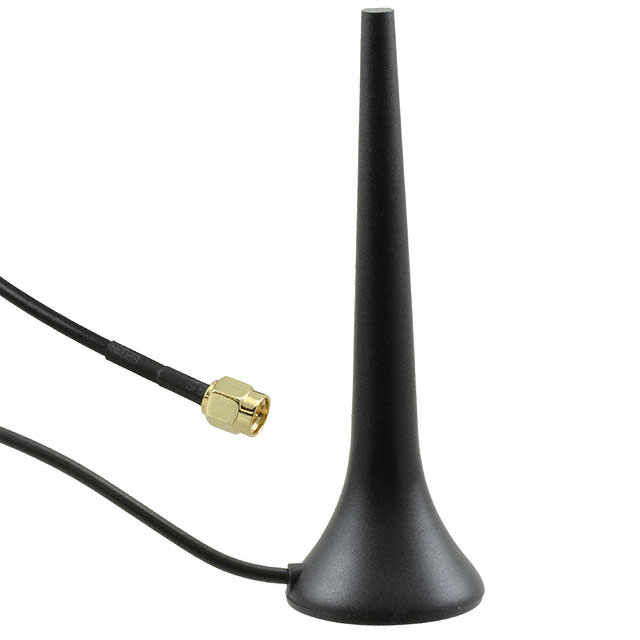

Siretta MIKE1A/2.5M/SMAM/S/S/20	GPRS GSM UMTS	1.5	1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 900 MHz	3 dBi	5	Cellular	Whip Straight		1.339 in	34 mm	Magnetic
Siretta MIKE1A/5M/SMAM/S/S/20	GPRS GSM UMTS	1.5	1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 900 MHz	3 dBi	5	Cellular	Whip Straight		1.339 in	34 mm	Magnetic
