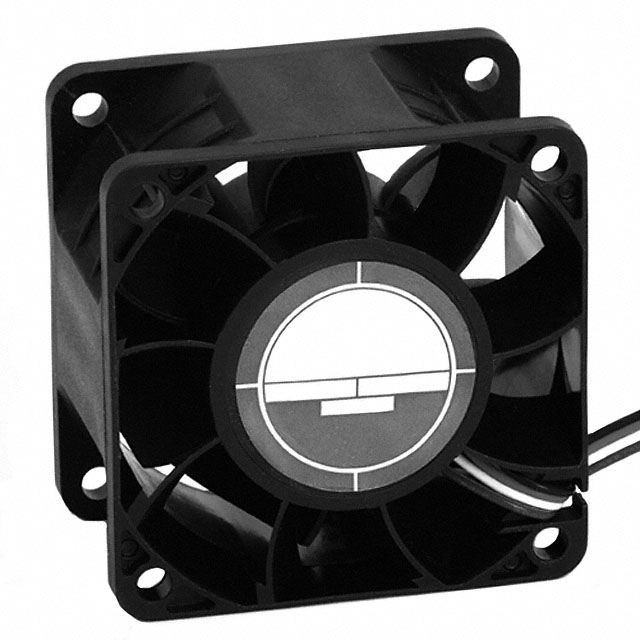

OD6038 Series
Manufacturer: ORION FANS
Beta
⌘K
FAN AXIAL 60X38MM 12VDC WIRE
| Part | Material - Blade | Lifetime @ Temp. | Current Rating (Amps) | Material - Frame | Fan Type | Power (Watts) | Features | Air Flow | Air Flow | Voltage - Rated | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Size / Dimension [z] | Size / Dimension [x] | Static Pressure | Static Pressure | Noise | RPM | Bearing Type | Width [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 40 °C 50000 Hrs | 0.28 A | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 3 W | Auto Restart Locked Rotor Sensor | 38 CFM | 1.06 mł/min | 12 VDC | 3 Wire Leads | 70 °C | -10 °C | cURus TUV | 60 mm | 60 mm | 144.5 Pa | 0.58 in H2O | 50 dB(A) | 6000 RPM | Ball | 38 mm |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 40 °C 50000 Hrs | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | Auto Restart Locked Rotor Sensor | 48 VDC | 3 Wire Leads | 70 °C | -10 °C | cURus TUV | 60 mm | 60 mm | Ball | 38 mm | ||||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 40 °C 50000 Hrs | 0.2 A | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 4 W | Auto Restart PWM Control Speed Sensor (Tach) | 38 CFM | 1.06 mł/min | 24 VDC | 4 Wire Leads | 70 °C | -10 °C | cURus TUV | 60 mm | 60 mm | 144.5 Pa | 0.58 in H2O | 50 dB(A) | 6000 RPM | Ball | 38 mm |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 40 °C 50000 Hrs | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | Auto Restart Locked Rotor Sensor | 48 VDC | 3 Wire Leads | 70 °C | -10 °C | cURus TUV | 60 mm | 60 mm | Ball | 38 mm | ||||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 40 °C 50000 Hrs | 0.64 A | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 8 W | Auto Restart Locked Rotor Sensor | 48 CFM | 1.34 m³/min | 12 VDC | 3 Wire Leads | 70 °C | -10 °C | cURus TUV | 60 mm | 60 mm | 241.6 Pa | 0.97 in H2O | 58 dB(A) | 8000 RPM | Ball | 38 mm |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 40 °C 50000 Hrs | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | Auto Restart | 48 VDC | 2 Wire Leads | 70 °C | -10 °C | cURus TUV | 60 mm | 60 mm | Ball | 38 mm | ||||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 40 °C 50000 Hrs | 1.8 A | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 17 W | Auto Restart PWM Control | 61 CFM | 1.71 m³/min | 12 VDC | 3 Wire Leads | 70 °C | -10 °C | cURus TUV | 60 mm | 60 mm | 396.1 Pa | 1.59 in H2O | 64 dB(A) | 10000 RPM | Ball | 38 mm |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 40 °C 50000 Hrs | 880 mA | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 21 W | Auto Restart Locked Rotor Sensor | 61 CFM | 1.71 m³/min | 24 VDC | 3 Wire Leads | 70 °C | -10 °C | cURus TUV | 60 mm | 60 mm | 396.1 Pa | 1.59 in H2O | 64 dB(A) | 10000 RPM | Ball | 38 mm |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 40 °C 50000 Hrs | 0.2 A | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 4 W | Auto Restart Speed Sensor (Tach) | 38 CFM | 1.06 mł/min | 24 VDC | 3 Wire Leads | 70 °C | -10 °C | cURus TUV | 60 mm | 60 mm | 144.5 Pa | 0.58 in H2O | 50 dB(A) | 6000 RPM | Ball | 38 mm |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 40 °C 50000 Hrs | 880 mA | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 21 W | Auto Restart | 61 CFM | 1.71 m³/min | 24 VDC | 2 Wire Leads | 70 °C | -10 °C | cURus TUV | 60 mm | 60 mm | 396.1 Pa | 1.59 in H2O | 64 dB(A) | 10000 RPM | Ball | 38 mm |
