M12 Connector Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

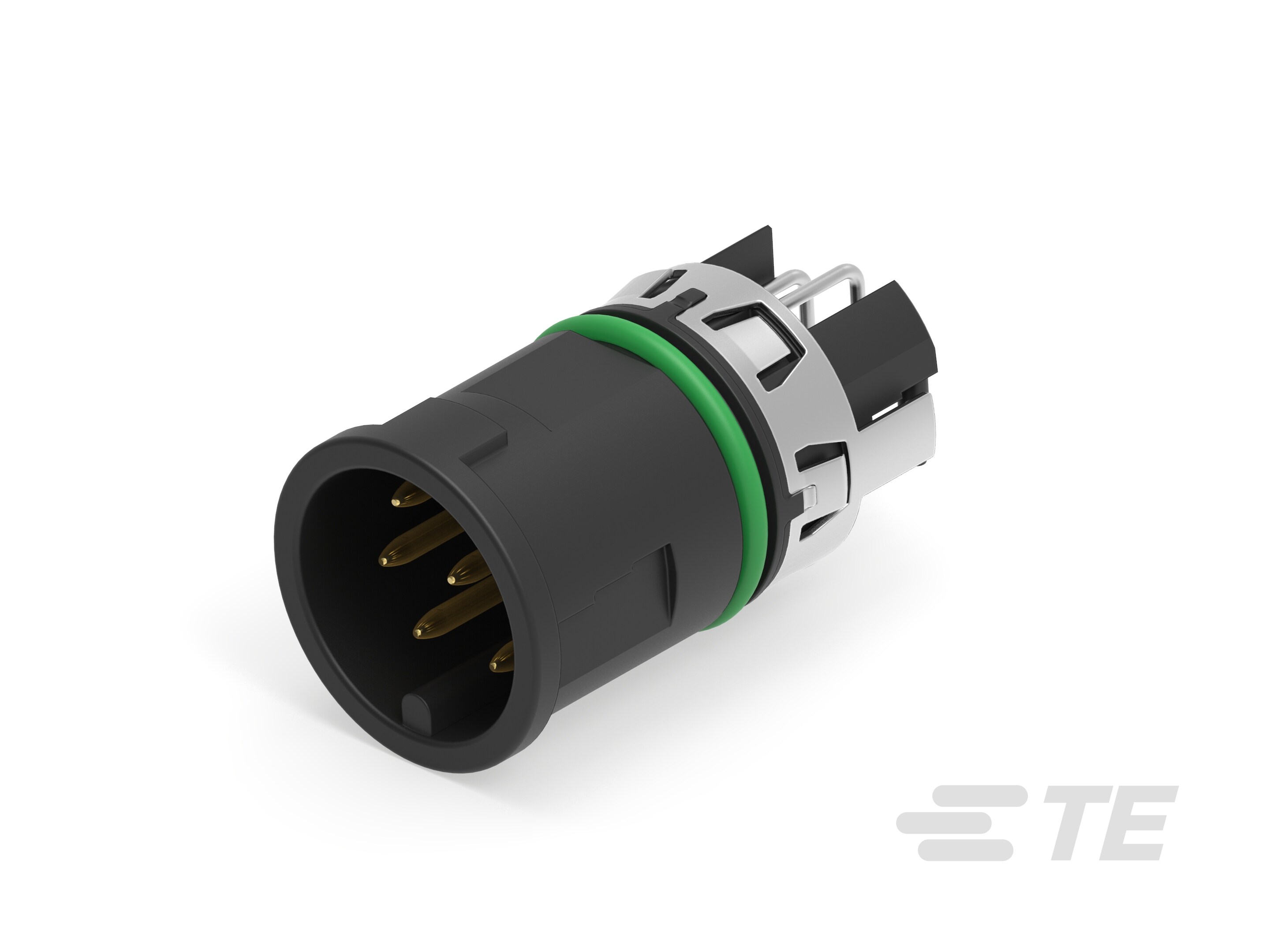

M12 MALE, A CODE,RA, 8P THR FRONT MOUNT
| Part | Contact Material | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Current Rating (Amps) | Connector Type | Termination | Shell Size - Insert | Ingress Protection | Number of Positions | Voltage Rating | Orientation | Color | Material Flammability Rating | Features | Mounting Type | Shell Material | Primary Material | Contact Finish - Mating | Assembly Configuration | 1st Connector Number of Positions | 1st Connector Gender | Cable Type | 1st Connector Mounting Type | Length | Length | 1st Connector Orientation | 1st Connector Shell Size - Insert [custom] | 1st Connector Number of Positions Loaded | 2nd Connector Type | Usage | 1st Connector Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Copper Alloy | Liquid Crystal Polymer (LCP) | 85 °C | -25 °C | Shielded | 2 A | Insert Male Pins | Solder | M12-8 | IP67 - Dust Tight Waterproof | 8 | 30 VDC | A | Black | UL94 V-0 | Board Guide Insert Only Requires Shell | Right Angle Through Hole | Glass Filled Nylon 10T Polyamide (PA10T) | Plastic | Gold | ||||||||||||||

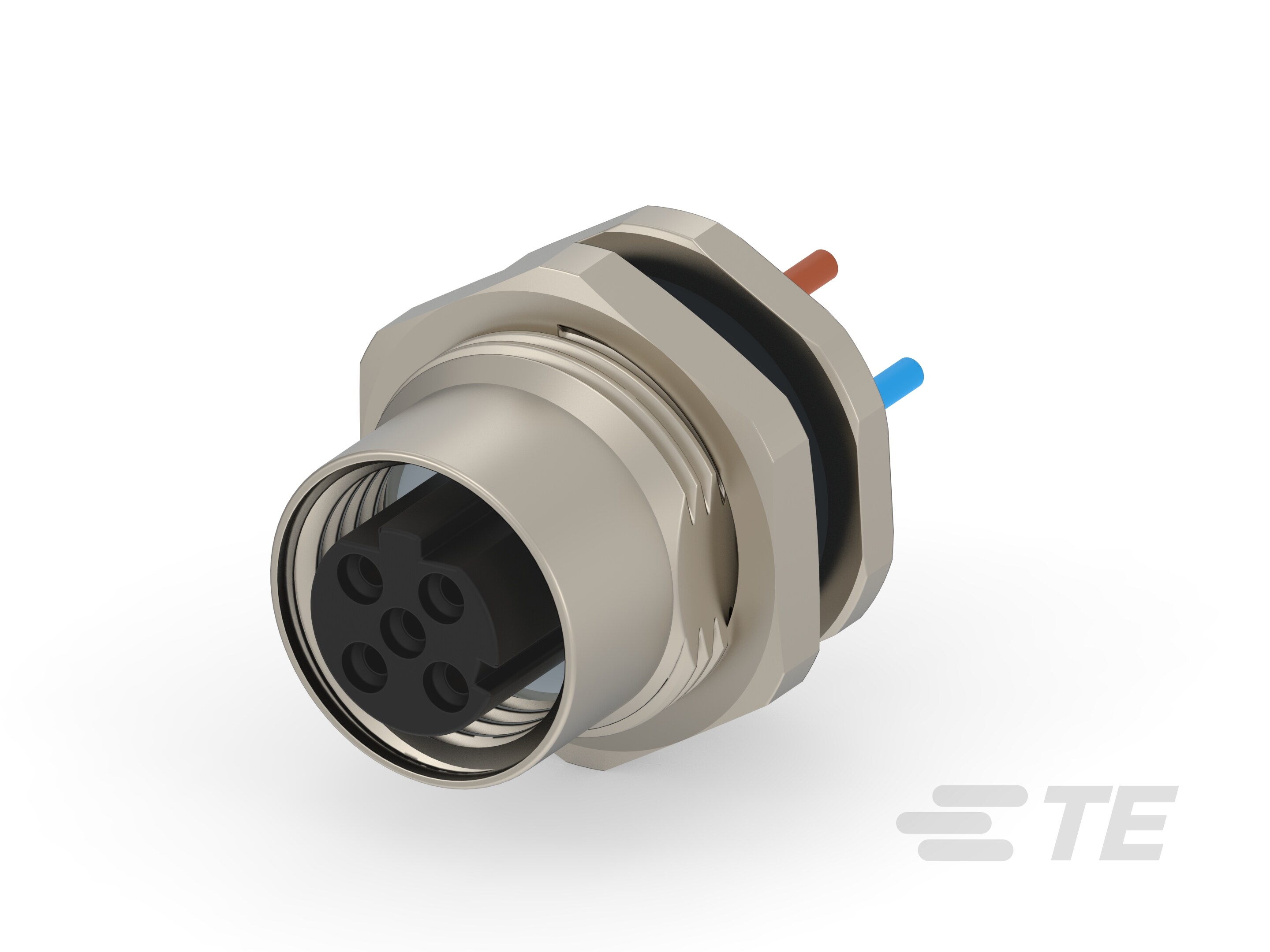

 TE Connectivity AMP Connectors | Unshielded | IP67 - Dust Tight Waterproof | Multiple | Standard | 5 | Female Sockets | Individual | Panel Mount | 0.66 ' | 200 mm | B | M12 | All | Wire Leads | Industrial Environments | Plug | ||||||||||||||||||

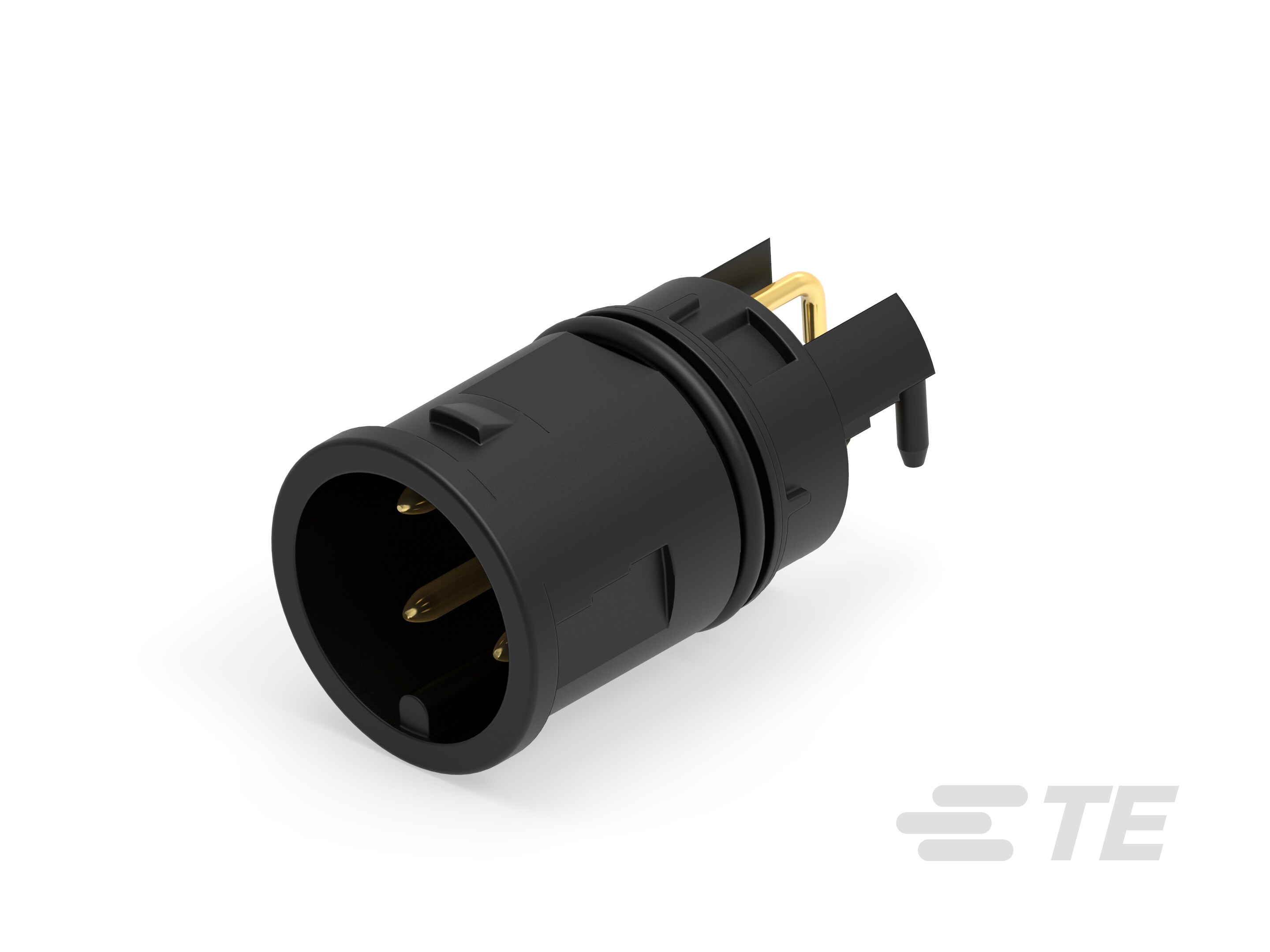

 TE Connectivity AMP Connectors | Copper Alloy | Liquid Crystal Polymer (LCP) | 85 °C | -25 °C | Unshielded | 4 A | Insert Male Pins | Solder | M12-4 | IP67 - Dust Tight Waterproof | 4 | 60 VDC | A | Black | UL94 V-0 | Board Guide Insert Only Requires Shell | Right Angle Through Hole | Gold | ||||||||||||||||

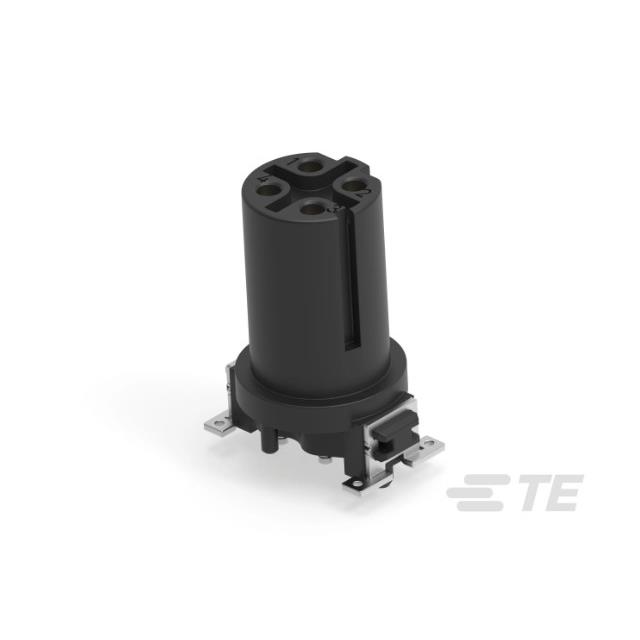

 TE Connectivity AMP Connectors | Copper Alloy | 85 °C | -25 °C | Unshielded | 4.8 A | Insert Female Sockets | Solder | M12-4 | IP65 IP67 | 4 | D | Black | UL94 V-0 | Board Guide Insert Only Requires Shell | Surface Mount | Gold | ||||||||||||||||||
 TE Connectivity AMP Connectors | Unshielded | 4.8 A | Insert Female Sockets | Solder Eyelet(s) | M12-4 | 4 | D | Black | Board Guide Insert Only Requires Shell | Surface Mount | ||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Liquid Crystal Polymer (LCP) | 85 °C | -25 °C | Shielded | 4 A | Insert Male Pins | Solder | M12-4 | IP67 - Dust Tight Waterproof | 4 | T | Black | Board Guide Insert Only Requires Shell | Surface Mount | Liquid Crystal Polymer (LCP) | Plastic | Gold | |||||||||||||||||

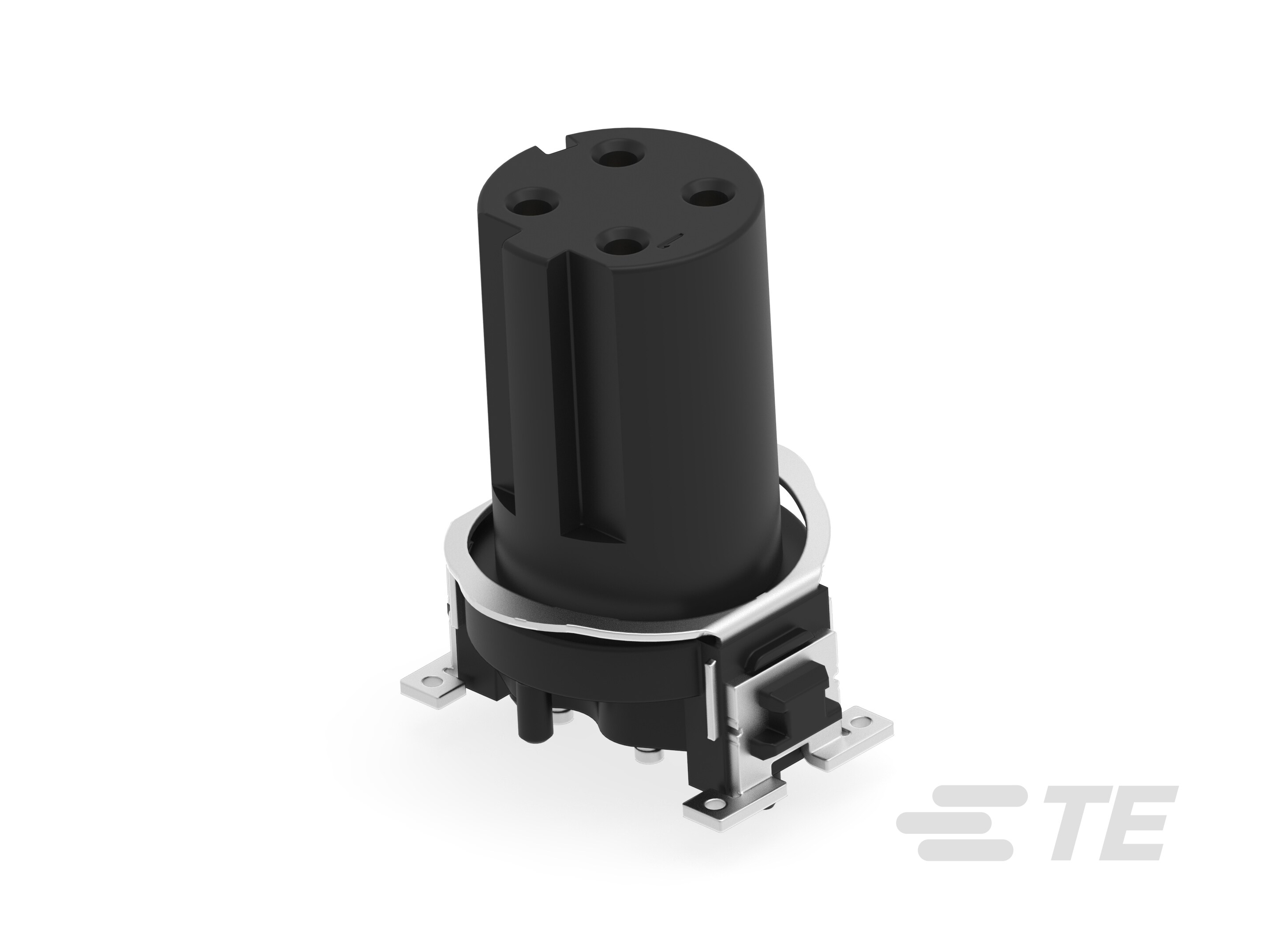

 TE Connectivity AMP Connectors | Copper Alloy | Liquid Crystal Polymer (LCP) | 85 °C | -25 °C | Unshielded | 4 A | Insert Female Sockets | Solder | M12-4 | IP67 - Dust Tight Waterproof | 4 | D | Black | UL94 V-0 | Board Guide Insert Only Requires Shell | Surface Mount | Gold | |||||||||||||||||
 TE Connectivity AMP Connectors | Copper Alloy | 85 °C | -25 °C | Unshielded | Insert Male Pins | Solder | M12-4 | IP65 IP67 | 4 | A | Black | UL94 V-0 | Board Guide Insert Only Requires Shell | Surface Mount | Gold | |||||||||||||||||||
 TE Connectivity AMP Connectors | Liquid Crystal Polymer (LCP) | 85 °C | -25 °C | Unshielded | 4 A | Insert Female Sockets | Solder Eyelet(s) | M12-4 | IP67 - Dust Tight Waterproof | 4 | D | Black | UL94 V-0 | Board Guide Insert Only Requires Shell | Surface Mount | Liquid Crystal Polymer (LCP) | Plastic | Gold | Push-Pull | |||||||||||||||
TE Connectivity AMP Connectors | 125 °C | -55 C | Unshielded | 4.8 A | Insert Female Sockets | Solder Eyelet(s) | M12-4 | IP67 - Dust Tight Waterproof | 4 | D | Black | UL94 V-0 | Board Guide Insert Only Requires Shell | Surface Mount | Gold |
