T470N14 Series
Manufacturer: INFINEON
Beta
⌘K

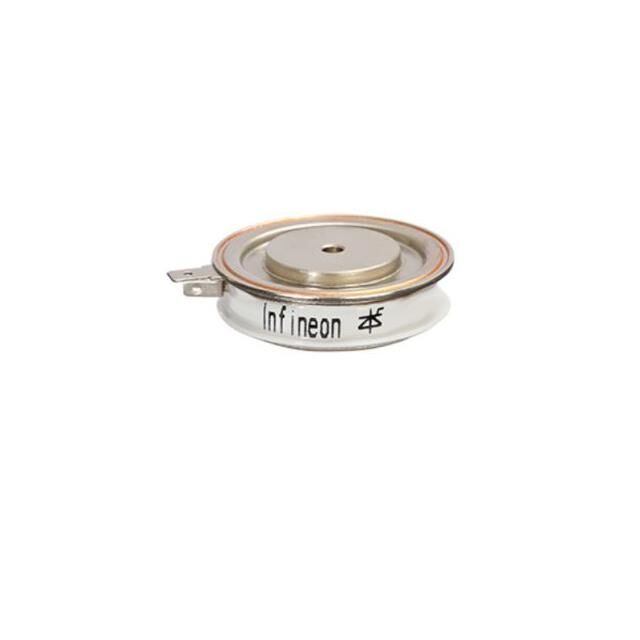

SCR MODULE 1.6KV 800A TO-200AA
| Part | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) [Max] [custom] | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) [Max] | Package / Case | Current - Gate Trigger (Igt) (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Structure | Mounting Type | Number of SCRs, Diodes | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 1.6 kV | 2 V | 470 A | 800 A | TO-200AA | 200 mA | 125 °C | -40 C | Single | Chassis Mount | 1 SCR | 7100 A | 300 mA |
