3002-1551 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

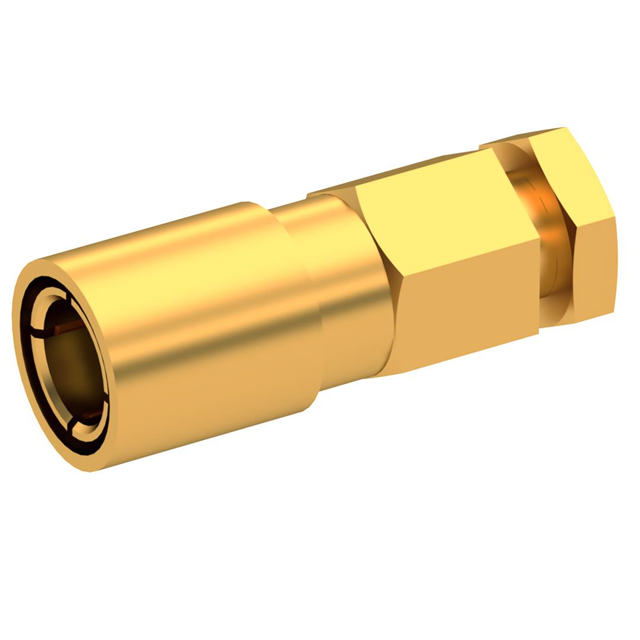

SLB / STRAIGHT PLUG FEMALE CLAMP
| Part | Center Contact Plating | Dielectric Material | Mating Cycles | Body Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Body Finish | Mounting Type | Impedance | Number of Ports | Housing Color | Cable Group | Contact Termination | Connector Style | Shield Termination | Center Contact Material | Frequency - Max [Max] | Fastening Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | 500 | Brass | 335 V | -65 ░C | 165 °C | 0.3 dB | Gold | Free Hanging (In-Line) | 50 Ohms | 1 | Gold | 188 316 RG-174 | Solder | SLB | Clamp | Beryllium Copper | 4 GHz | Snap-On | Female Socket Plug |
