ER11 Platform Series

Power Transformers Flyback AEC-Q200 60-240uH 1:2 2500V

Catalog

Power Transformers Flyback AEC-Q200 60-240uH 1:2 2500V

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Type	Footprint [y]	Footprint [x]	Footprint [x]	Footprint [y]	Voltage - Primary [Max]	Voltage - Primary [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Intended Chipset	Frequency

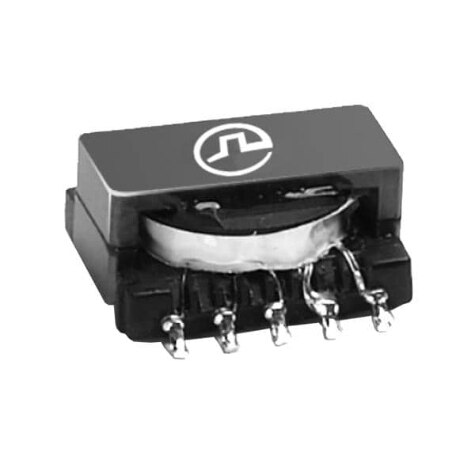

Pulse Electronics PH9363NLT	Surface Mount	125 °C	-40 C	12 mm	0.366 in	0.472 in	9.3 mm	2500 Vrms	For DC/DC Converters	13 mm	12 mm	0.472 in	0.512 in	18 V	8 V	0.266 in	6.75 mm	ACPL-302J ACPL-32JT	80 kHz

Power Transformers Flyback AEC-Q200 60-240uH 1:2 2500V
