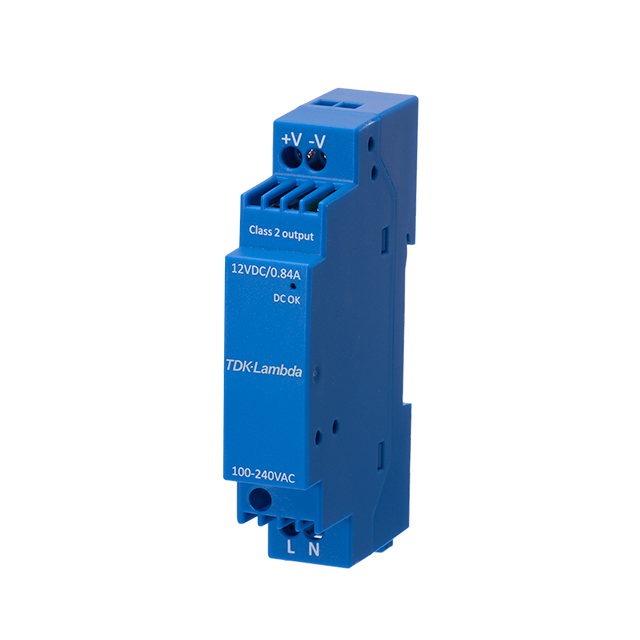

DRL10 Series

Catalog

AC/DC DIN RAIL SUPPLY 12V 10W

Part	Voltage - Isolation	Power (Watts)	Features	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Approval Agency	DC Voltage - Input (Min) [Min]	Applications	Input Type	Efficiency	Number of Outputs	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	DC Voltage - Input (Max) [Max]
TDK Corporation DRL10-12-1	3000 V	10 W	Universal Input	12 V	-20 °C	71 °C	840 mA	CE	120 V	Hazardous Locations ITE (Commercial)	AC or DC	85 %	1	264 VAC	85 VAC	3.58 in	91 mm	18 mm	55.6 mm	2.19 in	0.71 in	373 V
TDK Corporation DRL10-24-1	3000 V	10 W	Universal Input	24 V	-20 °C	71 °C	420 mA	CE	120 V	Hazardous Locations ITE (Commercial)	AC or DC	87 %	1	264 VAC	85 VAC	3.58 in	91 mm	18 mm	55.6 mm	2.19 in	0.71 in	373 V
