MTA306 Series

Catalog

SWITCH TOGGLE 3PDT 6A 125V

Part	Electrical Life	Actuator Material	Current Rating (Amps)	Mounting Type	Switch Function	Voltage Rating - AC	Bushing Thread	Termination Style	Actuator Type	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Illumination	Features	Voltage Rating - DC
TE Connectivity AMP Connectors MTA306HPC	60000 Cycles	Copper Alloy Chrome Plated	4 A 6 A	Panel Mount	On-Off-Mom	125 V	1/4-40	PC Pin	Standard Round	10.49 mm	6.4 mm	80 °C	-20 ░C	3PDT	Non-Illuminated	Epoxy Sealed Terminals	28 V

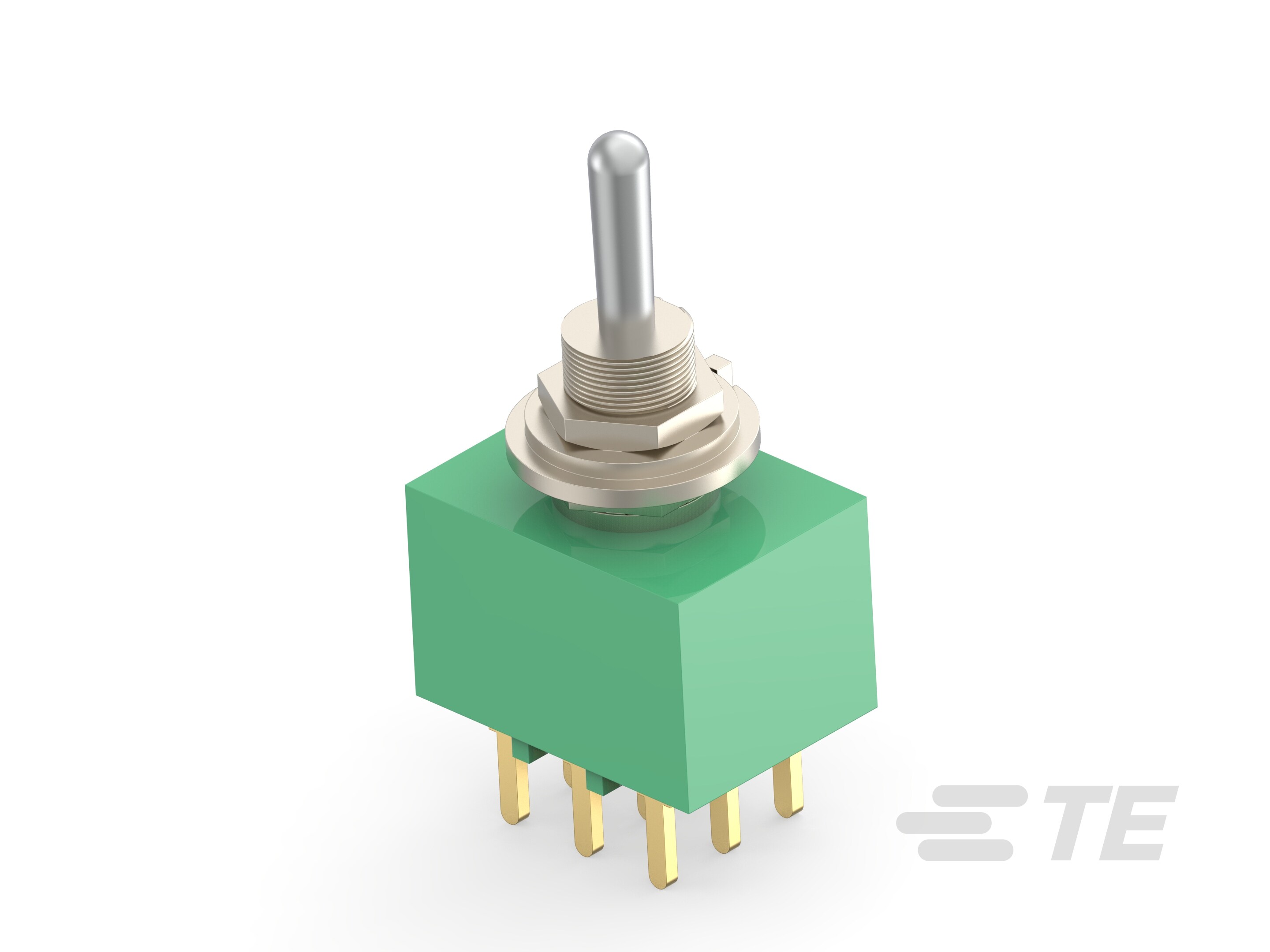

TE Connectivity AMP Connectors MTA306EPC		Brass Nickel Plated	4 A 6 A	Panel Mount	On-Off-On	125 V	1/4-40	PC Pin	Standard Round	10.49 mm		80 °C	-20 ░C	3PDT	Non-Illuminated	Epoxy Sealed Terminals	28 V
TE Connectivity AMP Connectors MTA306FPC				Panel Mount	On-Mom		1/4-40	PC Pin	Standard Round	10.49 mm				3PDT	Non-Illuminated
TE Connectivity AMP Connectors MTA306F				Panel Mount	On-Mom		1/4-40	Solder Lug	Standard Round	10.49 mm				3PDT	Non-Illuminated

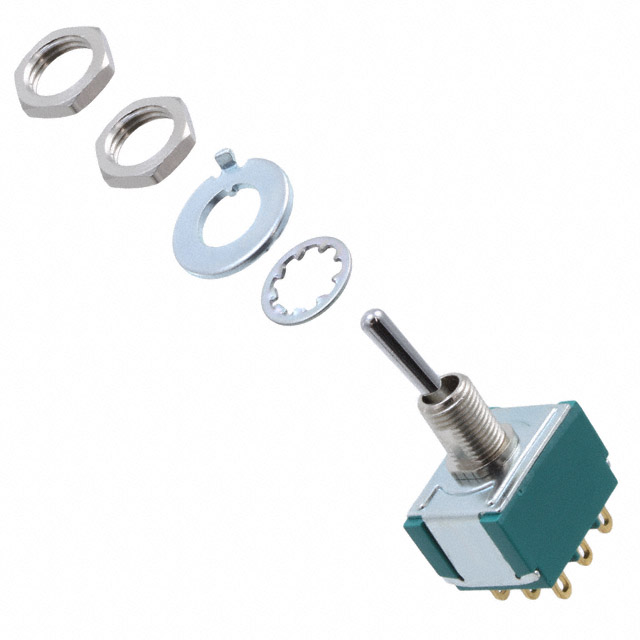

TE Connectivity AMP Connectors MTA306D	80000 Cycles	Brass Nickel Plated	4 A 6 A	Panel Mount	On-On	125 V	1/4-40	Solder Lug	Standard Round	10.49 mm	6.4 mm	80 °C	-20 ░C	3PDT	Non-Illuminated	Epoxy Sealed Terminals	28 V
