H5007 Series

Catalog

AUDIO TRANSFORMERS / SIGNAL TRANSFORMERS 1000BASET SMD NONPOE 350UH .65OHMS 1-POR

Part	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Mounting Type	Transformer Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Turns Ratio - Primary:Secondary
Pulse Electronics H5007NLT	1CT	1CT	Surface Mount	Isolation and Data Interface (Encapsulated)	12.2 mm	0.48 in	17.53 mm	0.69 in	70 °C	0 °C

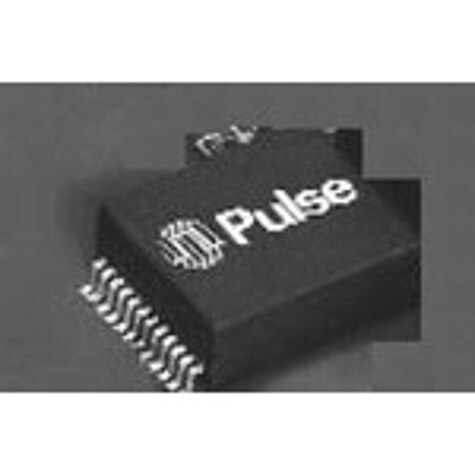

Pulse Electronics H5007ENL			Surface Mount	LAN 10/100/1000 Base-T		0.48 in	17.5 mm	0.689 in	70 °C	0 °C	350 µH	12.2 mm	0.225 in	5.72 mm	1CT:1CT Receiver 1CT:1CT Transmitter
