AKM90 Series

Manufacturer: XP Power

Catalog

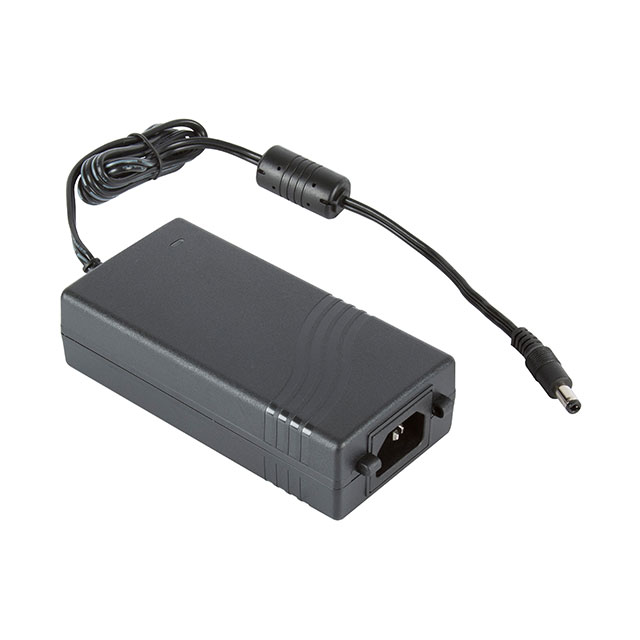

AC/DC DESKTOP ADAPTER 48V 90W

Part	Weight [custom]	Weight [custom]	Operating Temperature [Max]	Current - Output (Max) [Max]	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Approval Agency	Output Connector [diameter]	Output Connector	Output Connector [x]	Cord Length	Cord Length	No Load Power Consumption	Form	Power (Watts)	Input Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Polarization	Standard Number	Input Connector	Applications	Region Utilized
XP Power AKM90PS48	420.03 g	0.926 lb	60 °C	1.88 A	CoC Tier 2 Level VI	264 VAC	90 VAC	48 V	CB CCC CE CSA TUV UL	2.5 mm 5.5 mm	Barrel Plug	11 mm	1 m	39.4 in	150 mW	Desktop (Class I)	90 W	Cord (Sold Separately)	59.9 mm	2.36 "	36.8 mm	1.45 in	5.76 "	146.3 mm	Positive Center	60601-1 60950-1 62368-1	IEC 320-C14	ITE (Commercial) Medical	International
XP Power AKM90PS12	420.03 g	0.926 lb	60 °C	7 A	CoC Tier 2 Level VI	264 VAC	90 VAC	12 V	CB CCC CE CSA TUV UL	2.5 mm 5.5 mm	Barrel Plug	11 mm	1 m	39.4 in	150 mW	Desktop (Class I)	84 W	Cord (Sold Separately)	59.9 mm	2.36 "	36.8 mm	1.45 in	5.76 "	146.3 mm	Positive Center	60601-1 60950-1 62368-1	IEC 320-C14	ITE (Commercial) Medical	International
XP Power AKM90PS19	420.03 g	0.926 lb	60 °C	4.76 A	CoC Tier 2 Level VI	264 VAC	90 VAC	19 V	CB CCC CE CSA TUV UL	2.5 mm 5.5 mm	Barrel Plug	11 mm	1 m	39.4 in	150 mW	Desktop (Class I)	90 W	Cord (Sold Separately)	59.9 mm	2.36 "	36.8 mm	1.45 in	5.76 "	146.3 mm	Positive Center	60601-1 60950-1 62368-1	IEC 320-C14	ITE (Commercial) Medical	International
XP Power AKM90PS24	420.03 g	0.926 lb	60 °C	3.75 A	CoC Tier 2 Level VI	264 VAC	90 VAC	24 V	CB CCC CE CSA TUV UL	2.5 mm 5.5 mm	Barrel Plug	11 mm	1 m	39.4 in	150 mW	Desktop (Class I)	90 W	Cord (Sold Separately)	59.9 mm	2.36 "	36.8 mm	1.45 in	5.76 "	146.3 mm	Positive Center	60601-1 60950-1 62368-1	IEC 320-C14	ITE (Commercial) Medical	International
XP Power AKM90PS15	420.03 g	0.926 lb	60 °C		CoC Tier 2 Level VI	264 VAC	90 VAC	15 V	CB CCC CE CSA TUV UL	2.5 mm 5.5 mm	Barrel Plug	11 mm	1 m	39.4 in	150 mW	Desktop (Class I)	85 W	Cord (Sold Separately)	59.9 mm	2.36 "	36.8 mm	1.45 in	5.76 "	146.3 mm	Positive Center	60601-1 60950-1 62368-1	IEC 320-C14	ITE (Commercial) Medical	International
