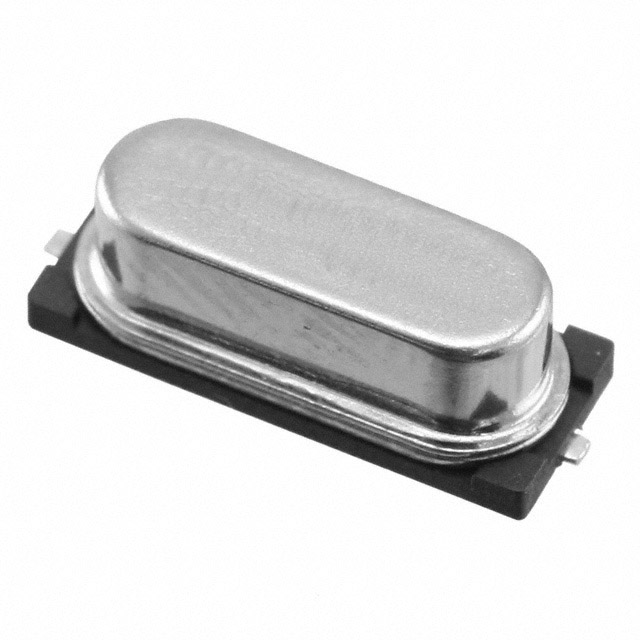

CSM-7X-DU Series
Manufacturer: ECS Inc.
Beta
⌘K
CRYSTALS 3.6864MHZ -55 TO +125C
| Part | Frequency Stability | Operating Temperature [Min] | Operating Temperature [Max] | Load Capacitance | Type | Frequency | Package / Case | Frequency Tolerance | Operating Mode | Mounting Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | ESR (Equivalent Series Resistance) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | 100 ppm | -55 C | 125 °C | 20 pF | MHz Crystal | 3.6864 MHz | HC-49/US | 30 ppm | Fundamental | Surface Mount | 0.189 in | 4.8 mm | 11.4 mm | 0.449 " | 150 Ohms | 0.169 in | 4.3 mm |
ECS Inc. | 100 ppm | -55 C | 125 °C | 20 pF | MHz Crystal | 14.31818 MHz | HC-49/US | 30 ppm | Fundamental | Surface Mount | 0.189 in | 4.8 mm | 11.4 mm | 0.449 " | 40 Ohms | 0.169 in | 4.3 mm |
