243 Series

Manufacturer: CNC Tech

Catalog

CONN IC DIP SOCKET 20POS TIN

Part	Current Rating (Amps)	Termination Post Length	Termination Post Length	Material Flammability Rating	Contact Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Type	Contact Finish - Post	Contact Material - Mating	Contact Material - Post	Housing Material	Pitch - Mating	Pitch - Mating	Features	Type	Type	Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions or Pins (Grid)	Pitch - Post	Pitch - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Type [custom]	Type [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
CNC Tech 243-20-1-03	1 A	3.15 mm	0.124 in	UL94 V-0	20 mOhm	-40 C	105 ░C	Solder	Through Hole	Tin	Phosphor Bronze	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	0.1 "	2.54 mm	Open Frame	7.62 mm	0.3 in	DIP	60 µin	1.52 Ám	20	0.1 in	2.54 mm	1.52 µm	60 µin
CNC Tech 243-08-1-03	1 A	3.15 mm	0.124 in	UL94 V-0	20 mOhm	-40 C	105 ░C	Solder	Through Hole	Tin	Phosphor Bronze	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	0.1 "	2.54 mm	Open Frame	7.62 mm	0.3 in	DIP	60 µin	1.52 Ám	8	0.1 in	2.54 mm	1.52 µm	60 µin	2	4
CNC Tech 243-40-1-06	1 A	3.15 mm	0.124 in	UL94 V-0	20 mOhm	-40 C	105 ░C	Solder	Through Hole	Tin	Phosphor Bronze	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	0.1 "	2.54 mm	Open Frame			DIP	100 çin	2.54 çm	40	0.1 in	2.54 mm	2.54 µm	100 µin			15.24 mm	0.6 in
CNC Tech 243-14-1-03	1 A	3.15 mm	0.124 in	UL94 V-0	20 mOhm	-40 C	105 ░C	Solder	Through Hole	Tin	Phosphor Bronze	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	0.1 "	2.54 mm	Open Frame	7.62 mm	0.3 in	DIP	60 µin	1.52 Ám	14	0.1 in	2.54 mm	1.52 µm	60 µin

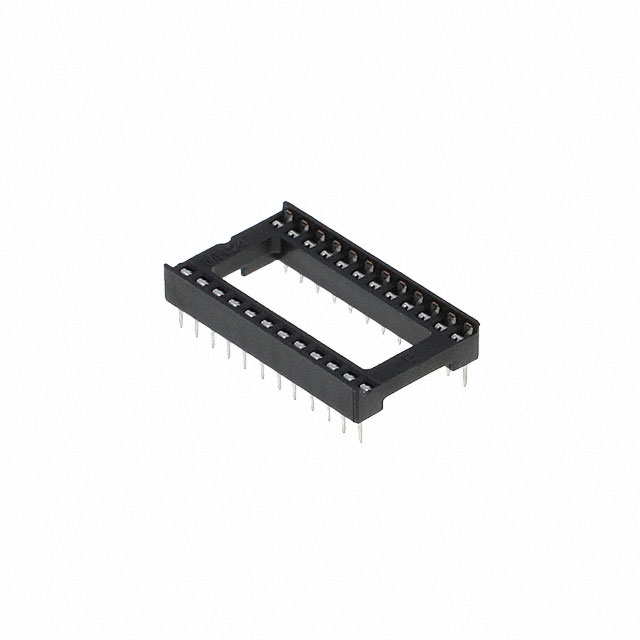

CNC Tech 243-24-1-06	1 A	3.15 mm	0.124 in	UL94 V-0	20 mOhm	-40 C	105 ░C	Solder	Through Hole	Tin	Phosphor Bronze	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	0.1 "	2.54 mm	Open Frame			DIP	100 çin	2.54 çm	24	0.1 in	2.54 mm	2.54 µm	100 µin	12	2	15.24 mm	0.6 in
CNC Tech 243-32-1-06	1 A	3.15 mm	0.124 in	UL94 V-0	20 mOhm	-40 C	105 ░C	Solder	Through Hole	Tin	Phosphor Bronze	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	0.1 "	2.54 mm	Open Frame			DIP	100 çin	2.54 çm	32	0.1 in	2.54 mm	2.54 µm	100 µin			15.24 mm	0.6 in
CNC Tech 243-28-1-06	1 A	3.15 mm	0.124 in	UL94 V-0	20 mOhm	-40 C	105 ░C	Solder	Through Hole	Tin	Phosphor Bronze	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	0.1 "	2.54 mm	Open Frame			DIP	100 çin	2.54 çm	28	0.1 in	2.54 mm	2.54 µm	100 µin			15.24 mm	0.6 in
CNC Tech 243-16-1-03	1 A	3.15 mm	0.124 in	UL94 V-0	20 mOhm	-40 C	105 ░C	Solder	Through Hole	Tin	Phosphor Bronze	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	0.1 "	2.54 mm	Open Frame	7.62 mm	0.3 in	DIP	60 µin	1.52 Ám	16	0.1 in	2.54 mm	1.52 µm	60 µin					2	8
