GDH02 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

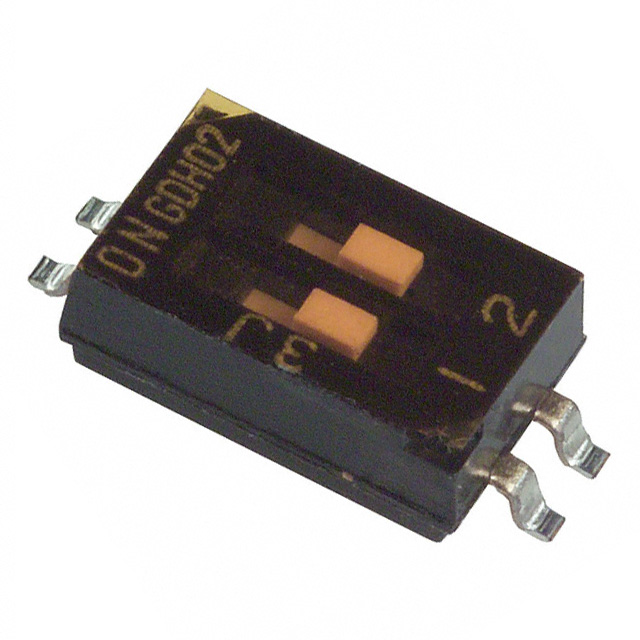

SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Body Material | Mechanical Life | Electrical Life | Length [x] | Length [x] | Circuit | Voltage Rating | Features | Contact Material | Termination Style | Current Rating (Amps) | Actuator Type | Mounting Type | Washable | Number of Positions | Contact Finish | Pitch | Pitch | Pitch | Height Above Board | Height Above Board [z] | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polyphenylene Sulfide (PPS) | 1000 Cycles | 1000 Cycles | 3.67 mm | 0.144 in | SPST | 24 VDC | Tape Seal | Copper Alloy | Gull Wing | 25 mA | Slide (Standard) | Surface Mount | 2 | Gold | 0.05 " | 1.27 mm | Half | 2.3 mm | 0.091 " | 85 °C | -30 ░C | Flush Recessed |
