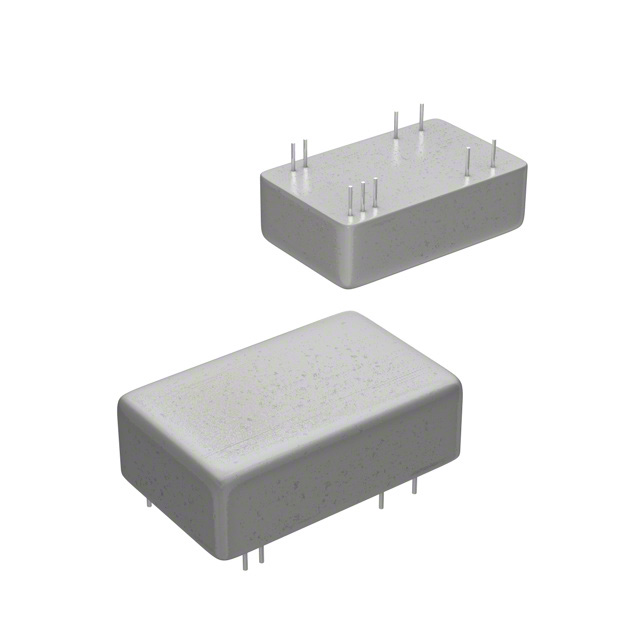

REC10-2405 Series
Manufacturer: Recom Power
Beta
⌘K
DC DC CONVERTER +/-5V 10W
| Part | Current - Output (Max) | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Voltage - Output 2 | Control Features | Features | Type | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Number of Outputs | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Package / Case | Power (Watts) | Voltage - Output 1 | Voltage - Isolation | Mounting Type | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 1 A | -40 C | 75 ░C | 84 % | -5 V | Active High Enable | OCP Remote On/Off SCP | Isolated Module | 36 V | 18 V | 2 | 10.2 mm | 20.3 mm | 1.26 in | 0.8 " | 32 mm | 0.4 " | 24-DIP Module 9 Leads | 10 W | 5 V | 2000 V | Through Hole | ITE (Commercial) |
