V23720 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

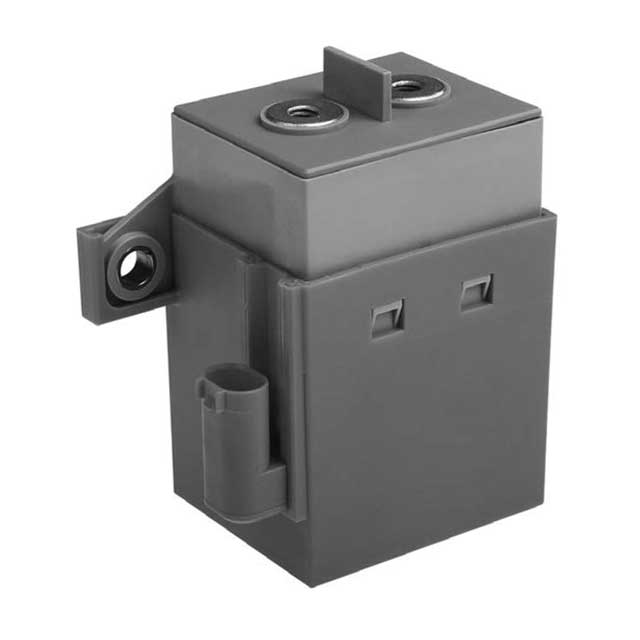

RELAY CONTACTOR SPST 250A 12V
| Part | Operate Time | Release Time | Contact Material | Coil Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Coil Voltage | Mounting Type | Switching Voltage | Contact Rating (Current) | Contact Form | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 25 ms | 25 ms | Silver Alloy | 4 Ohms | 85 °C | -40 C | Screw Terminal | 12 VDC | Chassis Mount | 450 VDC | 250 A | SPST-NO (DM) (1 Form X) | |
TE Connectivity AMP Connectors | 25 ms | 25 ms | Silver Alloy | 36 Ohms | 85 °C | -40 C | Screw Terminal | 12 VDC | Chassis Mount | 450 VDC | 250 A | SPST-NO (DM) (1 Form X) | 7 VDC |
