HVR37 Series

Catalog

METAL FILM RESISTORS - THROUGH HOLE HVR37 1% R5 1M54

Part	Resistance	Package Name	Composition	Features	Package / Case	Tolerance	Power (Watts)	Power (Watts) Options	Size / Dimension Diameter	Size / Dimension Length	Number of Terminations	Operating Temperature (Max)	Operating Temperature (Min)	Temperature Coefficient
Vishay Dale HVR3700001544FR500	1.54 MOhms	Axial	Metal Film	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	1 %	500 mW	1/2W	0.157 in	0.394 in	2	155 °C	-55 °C	200 ppm/°C

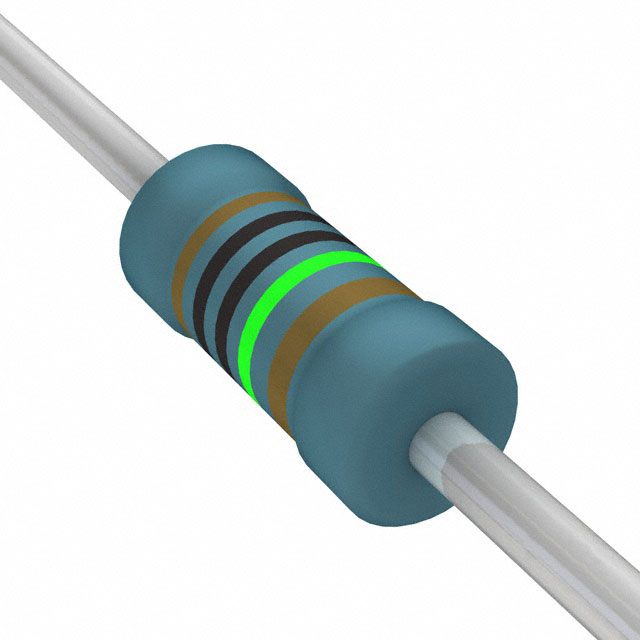

Vishay Dale HVR3700001005FR500	10 MOhm	Axial	Metal Film	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	1 %	500 mW	1/2W	0.157 in	0.394 in	2	155 °C	-55 °C	200 ppm/°C
Vishay Dale HVR3700003903FR500	390 kOhm	Axial	Metal Film	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	1 %	500 mW	1/2W	0.157 in	0.394 in	2	155 °C	-55 °C	200 ppm/°C
Vishay Dale HVR3700009104JR500	9.1 MOhm	Axial	Metal Film	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	5 %	500 mW	1/2W	0.157 in	0.394 in	2	155 °C	-55 °C	200 ppm/°C
Vishay Dale HVR3700001504JA100	1.5 MOhm	Axial	Metal Film	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	5 %	500 mW	1/2W	0.157 in	0.394 in	2	155 °C	-55 °C	200 ppm/°C

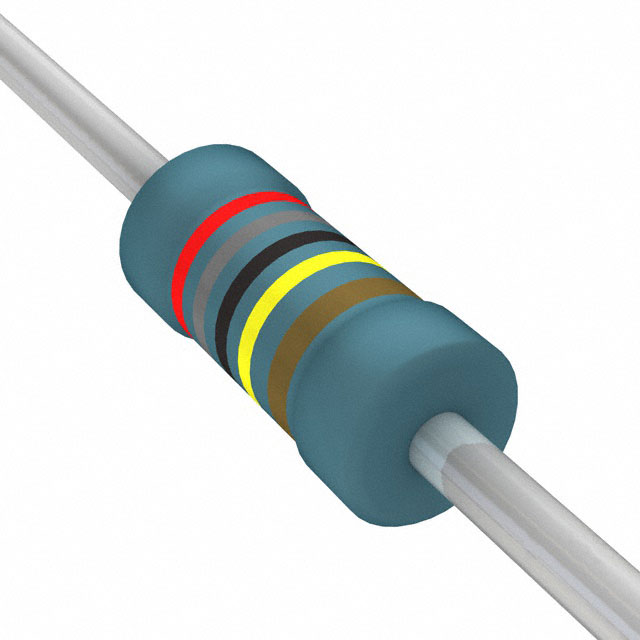

Vishay Dale HVR3700002804FR500	2.8 MOhms	Axial	Metal Film	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	1 %	500 mW	1/2W	0.157 in	0.394 in	2	155 °C	-55 °C	200 ppm/°C
Vishay Dale HVR3700002003JR500	200 kOhm	Axial	Metal Film	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	5 %	500 mW	1/2W	0.157 in	0.394 in	2	155 °C	-55 °C	200 ppm/°C

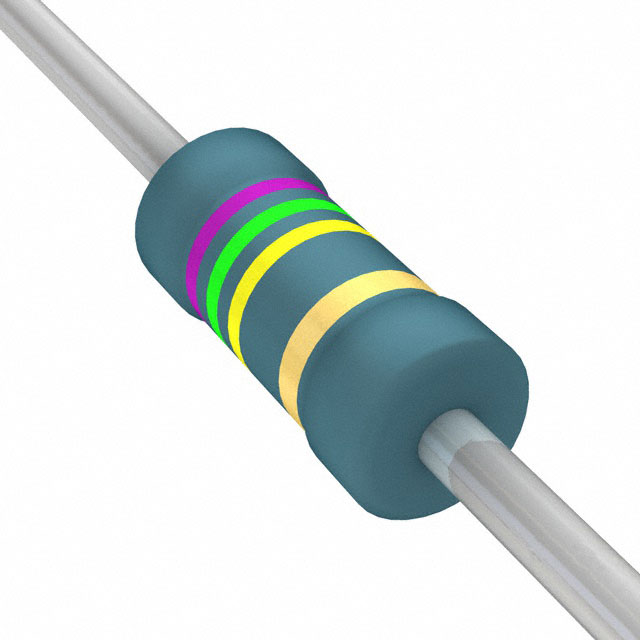

Vishay Dale HVR3700007503JR500	750 kOhm	Axial	Metal Film	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	5 %	500 mW	1/2W	0.157 in	0.394 in	2	155 °C	-55 °C	200 ppm/°C
Vishay Dale HVR3700002003FR500	200 kOhm	Axial	Metal Film	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	1 %	500 mW	1/2W	0.157 in	0.394 in	2	155 °C	-55 °C	200 ppm/°C

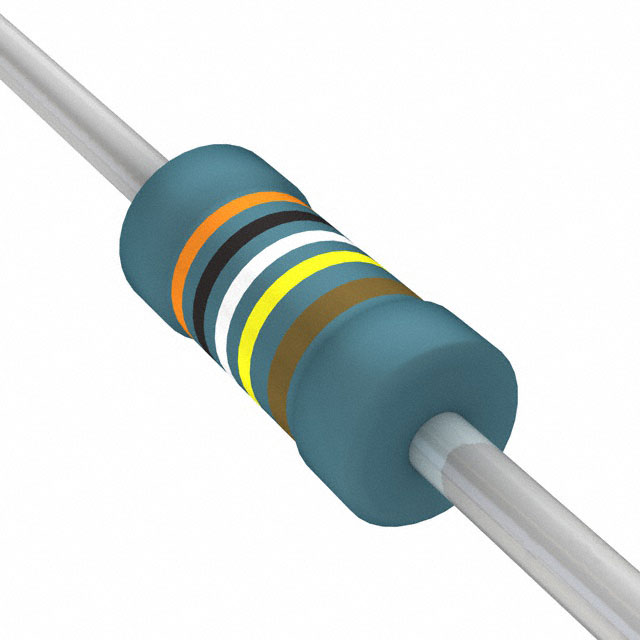

Vishay Dale HVR3700003094FR500	3.09 MOhms	Axial	Metal Film	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	1 %	500 mW	1/2W	0.157 in	0.394 in	2	155 °C	-55 °C	200 ppm/°C
