I7A4W033 Series
Manufacturer: TDK Corporation
Beta
⌘K

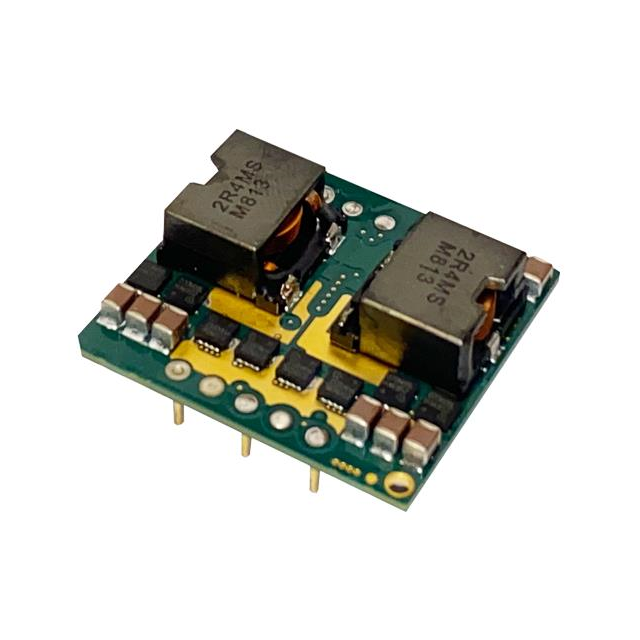

DC DC CONVERTER 3.3-24V 500W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Supplier Device Package | Power (Watts) | Control Features | Size / Dimension | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Features | Package / Case | Mounting Type | Voltage - Input (Min) [Min] | Type | Applications | Efficiency | Number of Outputs | Approval Agency | Voltage - Input (Max) [Max] | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 125 °C | -40 C | 33 A | 3.3 V | 24 V | Sixteenth Brick | 500 W | Active High Enable | 11.5 mm 34 mm 36.8 mm | 1.45 in | 0.45 in | 1.34 in | Adjustable Output Remote On/Off Remote Sense | Sixteenth Brick | Through Hole | 18 V | Non-Isolated PoL Module | ITE (Commercial) | 97 % | 1 | CE cURus IEC | 60 V | 62368-1 |
