MEAS EB100 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

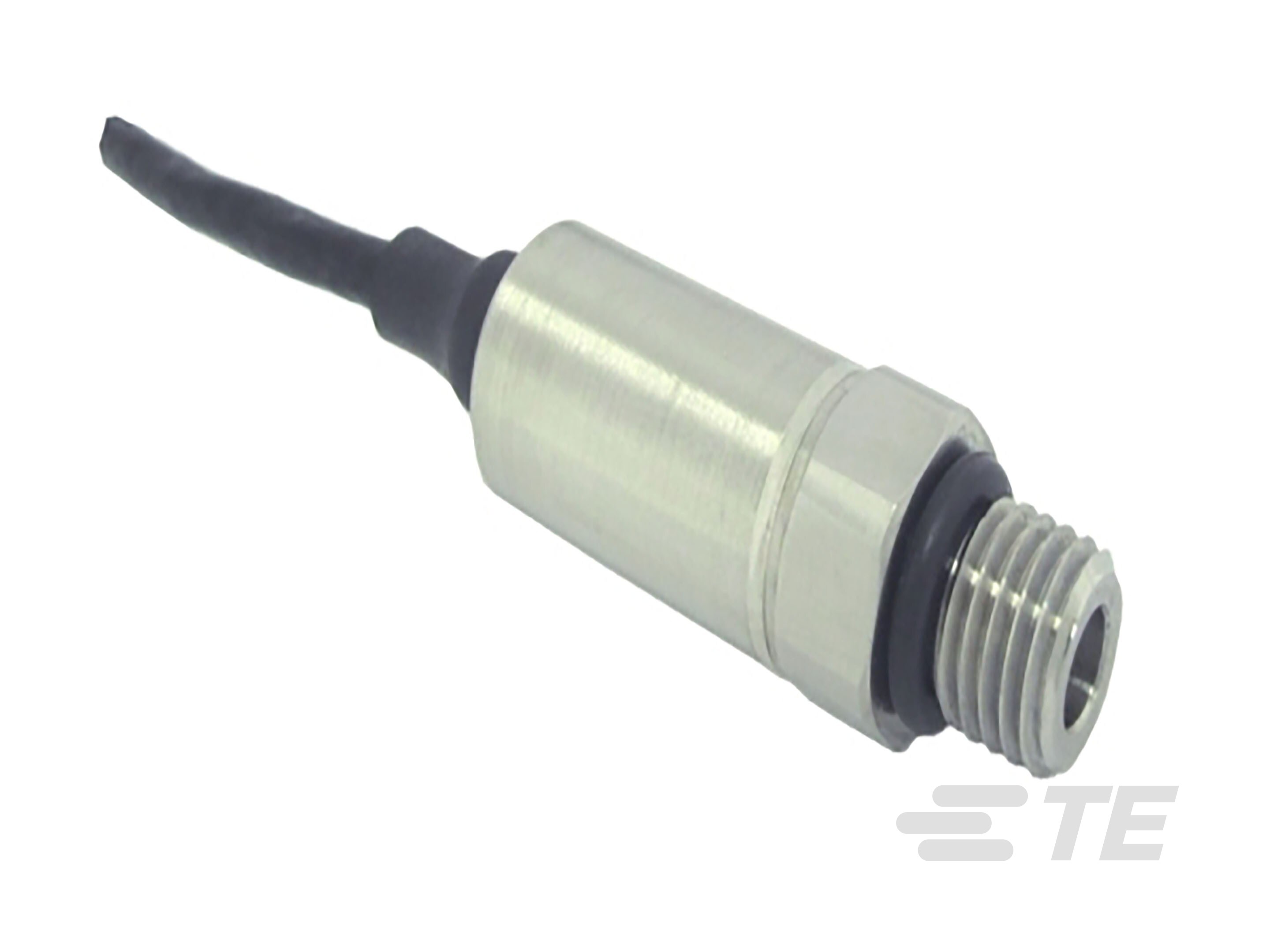

PRESS XDCR EB1UM-00000P-200BA

Part	Port Style	Features	Applications	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Output [Max]	Output [Min]	Port Size	Accuracy	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Maximum Pressure	Maximum Pressure	Output Type	Maximum Pressure [Max]	Port Size	Maximum Pressure [Max]	Termination Style
TE Connectivity AMP Connectors EB1UM-00000P-200BA	Threaded	Amplified Output Temperature Compensated	Industrial Automation	20000 kPa	2900.75 PSI	125 °C	-40 C	4.5 V	0.5 V	M10 x 1.0 Male	0.25 %	30 VDC	8 V	Cylinder Threaded	40000 kPa	5801.51 PSI	Analog Voltage
TE Connectivity AMP Connectors EB1US-00000N-350BA	Threaded	Amplified Output Temperature Compensated	Industrial Automation	35000 kPa	5076.32 PSI	125 °C	-40 C	4.5 V	0.5 V	M5 x 0.8 Male	0.25 %	30 VDC	8 V	Cylinder Threaded	70000 kPa		Analog Voltage	10152.64 PSI
TE Connectivity AMP Connectors EB1US-00000X-1K5PA	Threaded	Amplified Output Temperature Compensated	Industrial Automation	10000 kPa	1450.38 PSI	125 °C	-40 C	4.5 V	0.5 V	3/8 Male UNF	0.25 %	30 VDC	8 V	Cylinder Threaded			Analog Voltage		9.53 mm
TE Connectivity AMP Connectors EB1UP-00000N-020BA	Threaded	Amplified Output Temperature Compensated	Industrial Automation	2000 kPa	290.08 PSI	125 °C	-40 C	4.5 V	0.5 V	M5 x 0.8 Male	0.25 %	30 VDC	8 V	Cylinder Threaded	4000 kPa	580 PSI	Analog Voltage
TE Connectivity AMP Connectors EB1US-000001V-020BA	Threaded	Amplified Output Temperature Compensated	Industrial Automation	2000 kPa	290.08 PSI	125 °C	-40 C	4.5 V	0.5 V	10-32 UNF Male	0.25 %	30 VDC	8 V	Cylinder Threaded	4000 kPa	580 PSI	Analog Voltage
TE Connectivity AMP Connectors EB1UM-00000S-100BA	Threaded	Amplified Output Temperature Compensated	Industrial Automation	10000 kPa	1450.38 PSI	125 °C	-40 C	4.5 V	0.5 V	M8 x 1 Male	0.25 %	30 VDC	8 V	Cylinder Threaded			Analog Voltage
TE Connectivity AMP Connectors EB1US-00000N-020BA	Threaded	Amplified Output Temperature Compensated	Industrial Automation	2000 kPa	290.08 PSI	125 °C	-40 C	4.5 V	0.5 V	M5 x 0.8 Male	0.25 %	30 VDC	8 V	Cylinder Threaded			Analog Voltage	580 PSI		4000 kPa	Cable
TE Connectivity AMP Connectors EB1US-00000V-01KPA	Threaded	Amplified Output Temperature Compensated	Industrial Automation	7000 kPa	1015.26 PSI	125 °C	-40 C	4.5 V	0.5 V	10-32 UNF Male	0.25 %	30 VDC	8 V	Cylinder Threaded	14000 kPa	2030.53 PSI	Analog Voltage
TE Connectivity AMP Connectors EB1US-00000S-035BA	Threaded	Amplified Output Temperature Compensated	Industrial Automation	3500 kPa	507.63 PSI	125 °C	-40 C	4.5 V	0.5 V	M8 x 1 Male	1 %	30 VDC	8 V		7000 kPa	1015.26 PSI	Analog Voltage
TE Connectivity AMP Connectors EB1UM-00000S-020BA	Threaded	Amplified Output Temperature Compensated	Industrial Automation	2000 kPa	290.08 PSI	125 °C	-40 C	4.5 V	0.5 V	M8 x 1 Male	0.25 %	30 VDC	8 V	Cylinder Threaded			Analog Voltage	580 PSI		4000 kPa	Cable
