MD01 Series

Catalog

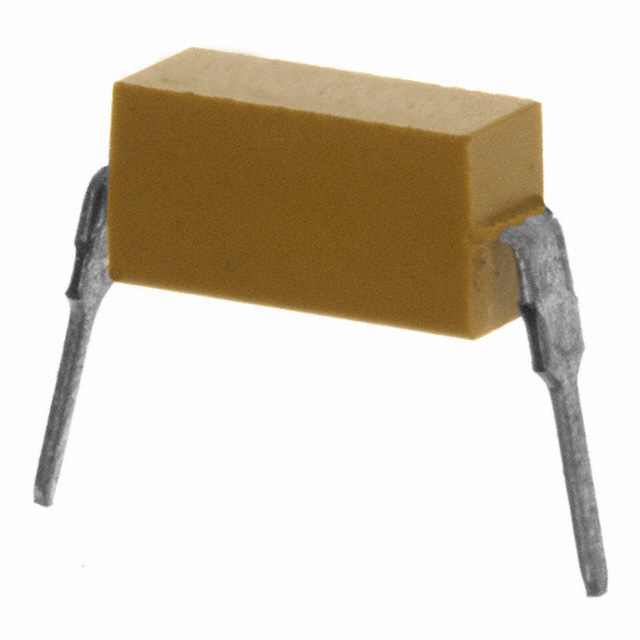

MULTILAYER CERAMIC CAPACITORS MLCC - LEADED 50V 91 PF C0G (NP0) 5 % 0.325 IN

Part	Capacitance	Lead Spacing	Lead Spacing	Temperature Coefficient	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max)	Package / Case	Applications	Voltage - Rated	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
KYOCERA AVX MD015A910JAB	91 pF	0.325 in	8.25 mm	C0G NP0	5 %	0.175 "	4.45 mm	2-DIP	General Purpose	50 VDC	0.26 in	0.1 in	6.6 mm	2.54 mm	-55 C	125 °C	Through Hole
KYOCERA AVX MD015A470JAB	47 pF	0.325 in	8.25 mm	C0G NP0	5 %	0.175 "	4.45 mm	2-DIP	General Purpose	50 VDC	0.26 in	0.1 in	6.6 mm	2.54 mm	-55 C	125 °C	Through Hole
KYOCERA AVX MD015C152KAB	1500 pF	0.325 in	8.25 mm	X7R	10 %	0.175 "	4.45 mm	2-DIP	General Purpose	50 VDC	0.26 in	0.1 in	6.6 mm	2.54 mm	-55 C	125 °C	Through Hole
KYOCERA AVX MD015C223KAB	0.022 µF	0.325 in	8.25 mm	X7R	10 %	0.175 "	4.45 mm	2-DIP	General Purpose	50 VDC	0.26 in	0.1 in	6.6 mm	2.54 mm	-55 C	125 °C	Through Hole
KYOCERA AVX MD015C104JAB	100000 pF	0.325 in	8.25 mm	X7R	5 %	0.175 "	4.45 mm	2-DIP	General Purpose	50 VDC	0.26 in	0.1 in	6.6 mm	2.54 mm	-55 C	125 °C	Through Hole
KYOCERA AVX MD015A270KAB	27 pF	0.325 in	8.25 mm	C0G NP0	10 %	0.175 "	4.45 mm	2-DIP	General Purpose	50 VDC	0.26 in	0.1 in	6.6 mm	2.54 mm	-55 C	125 °C	Through Hole
KYOCERA AVX MD015A470KAB	47 pF	0.325 in	8.25 mm	C0G NP0	10 %	0.175 "	4.45 mm	2-DIP	General Purpose	50 VDC	0.26 in	0.1 in	6.6 mm	2.54 mm	-55 C	125 °C	Through Hole
KYOCERA AVX MD011A331KAB	330 pF	0.325 in	8.25 mm	C0G NP0	10 %	0.175 "	4.45 mm	2-DIP	General Purpose	100 V	0.26 in	0.1 in	6.6 mm	2.54 mm	-55 C	125 °C	Through Hole
KYOCERA AVX MD015A561KAB	560 pF	0.325 in	8.25 mm	C0G NP0	10 %	0.175 "	4.45 mm	2-DIP	General Purpose	50 VDC	0.26 in	0.1 in	6.6 mm	2.54 mm	-55 C	125 °C	Through Hole
KYOCERA AVX MD015A112JAB	1100 pF	0.325 in	8.25 mm	C0G NP0	5 %	0.175 "	4.45 mm	2-DIP	General Purpose	50 VDC	0.26 in	0.1 in	6.6 mm	2.54 mm	-55 C	125 °C	Through Hole
