7043.8220 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

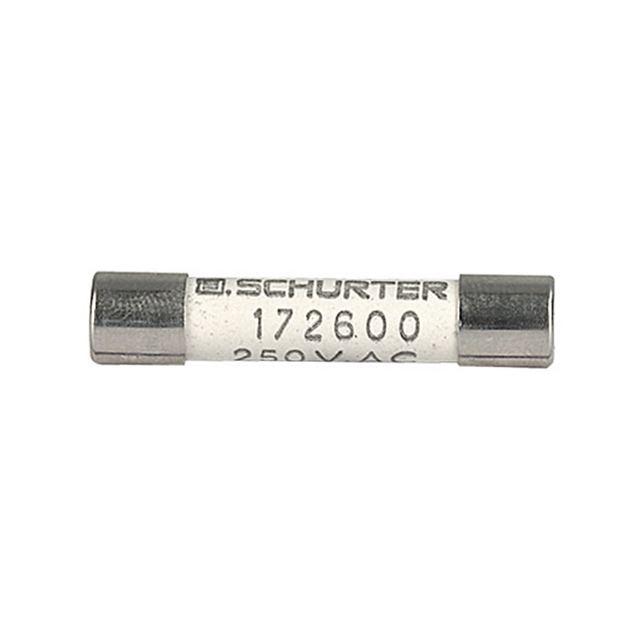

FUSE CERAMIC 16A 250VAC 3AB 3AG
| Part | Melting I˛t | Mounting Type | Fuse Type | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Melting I²t | Breaking Capacity @ Rated Voltage | Current Rating (Amps) | Response Time | Voltage Rating - AC | Package / Case [y] | Package / Case | Package / Case [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 330 | Through Hole | Cartridge Ceramic | 70 °C | -40 C | 31.8 mm | 1.252 " | 6.35 mm | 0.25 " | 330 I²t | 1.5 kA | 16 A | Slow Blow | 250 V | 3AB 3AG | 0.25 " |
