LQA30 Series

Catalog

DIODE ARRAY GP 200V 15A TO220AB

Part	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Supplier Device Package	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Reverse Leakage @ Vr	Package / Case	Speed	Diode Configuration	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)
POWER INTEGRATIONS LQA30T200C	-55 °C	150 °C	Through Hole	200 V	Standard	TO-220AB	15 A	1.2 V	500 µA	TO-220-3	200 mA 500 ns	1 Pair Common Cathode	16.5 ns

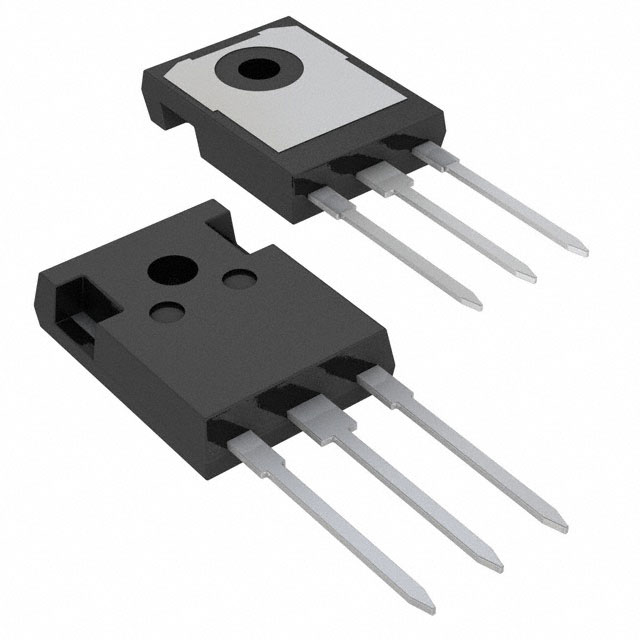

POWER INTEGRATIONS LQA30A300C		150 °C	Through Hole	300 V	Schottky	TO-247AD	15 A		25 µA	TO-247-3	200 mA 500 ns	1 Pair Common Cathode	13 ns	1.9 V
POWER INTEGRATIONS LQA30B150C	-55 °C	150 °C	Surface Mount		Standard	TO-263AB	15 A	1.2 V	500 µA	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	200 mA 500 ns	1 Pair Common Cathode	16.3 ns
POWER INTEGRATIONS LQA30T150C	-55 °C	150 °C	Through Hole		Standard	TO-220AB	15 A	1.2 V	500 µA	TO-220-3	200 mA 500 ns	1 Pair Common Cathode	16.3 ns
POWER INTEGRATIONS LQA30T300		150 °C	Through Hole	300 V	Standard	TO-220AC			250 µA	TO-220-2	200 mA 500 ns		13.7 ns	1.95 V	30 A
POWER INTEGRATIONS LQA30B200C	-55 °C	150 °C	Through Hole	200 V	Standard	TO-220AB	15 A	1.2 V	500 µA	TO-220-3	200 mA 500 ns	1 Pair Common Cathode	16.5 ns
