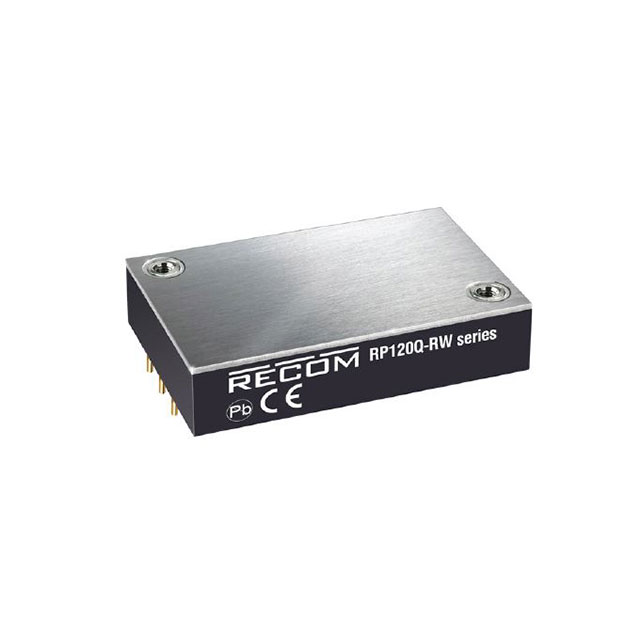

RP120Q-RW Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 132W 40-160VIN 24VOUT 5.5A

Part	Mounting Type	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Applications	Supplier Device Package	Voltage - Isolation	Voltage - Output 1	Features	Efficiency	Package / Case	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Voltage - Input (Min) [Min]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max)
Recom Power RP120Q-11024SRW/P-HC	Through Hole	160 V	5.5 A	ITE (Commercial) Railway	Quarter Brick	3000 V	24 V	OCP OTP OVP SCP UVLO	89 %	Quarter Brick	132 W	1.45 in	18.8 mm	36.8 mm	57.9 mm	2.28 "	0.74 "	1	40 V	Isolated Module	-40 °C	100 °C

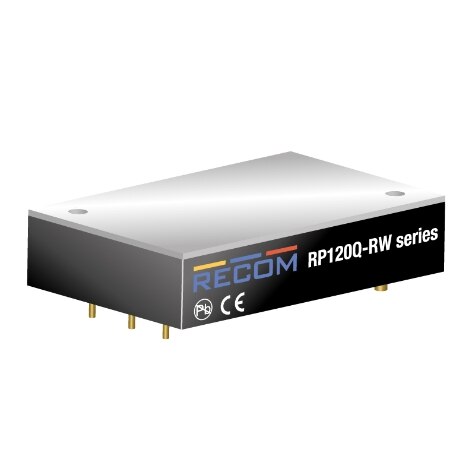

Recom Power RP120Q-2412SRW/N-HC	Through Hole	36 V	10 A	ITE (Commercial) Railway	Quarter Brick	2250 VDC	12 V	OCP OTP OVP SCP UVLO	88 %	Quarter Brick	120 W	1.45 in	18.8 mm	36.8 mm	57.9 mm	2.28 "	0.74 "	1	9 V	Isolated Module	-40 °C	100 °C
Recom Power RP120Q-2448SRW/N	Through Hole	36 V	2.5 A	ITE (Commercial) Railway	Quarter Brick	2250 VDC	48 V	OCP OTP OVP SCP UVLO	88 %	Quarter Brick	120 W	1.45 in			57.9 mm	2.28 "	0.5 in	1	9 V	Isolated Module	-40 °C	100 °C	12.7 mm	36.8 mm
Recom Power RP120Q-11024SRW/P	Through Hole	160 V	5.5 A	ITE (Commercial) Railway	Quarter Brick	3000 V	24 V	OCP OTP OVP SCP UVLO	89 %	Quarter Brick	132 W	1.45 in			57.9 mm	2.28 "	0.5 in	1	40 V	Isolated Module	-40 °C	100 °C	12.7 mm	36.8 mm
Recom Power RP120Q-4824SRW/P-HC	Through Hole	75 V		ITE (Commercial) Railway	Quarter Brick	2250 VDC	24 V	OCP OTP OVP SCP UVLO	90 %	Quarter Brick	120 W	1.45 in	18.8 mm	36.8 mm	57.9 mm	2.28 "	0.74 "	1	16.5 V	Isolated Module	-40 °C	100 °C			5 A
Recom Power RP120Q-11012SRW/P	Through Hole	160 V	11 A	ITE (Commercial) Railway	Quarter Brick	3000 V	12 V	OCP OTP OVP SCP UVLO	88 %	Quarter Brick	132 W	1.45 in			57.9 mm	2.28 "	0.5 in	1	40 V	Isolated Module	-40 °C	100 °C	12.7 mm	36.8 mm
Recom Power RP120Q-4824SRW/N	Through Hole	75 V		ITE (Commercial) Railway	Quarter Brick	2250 VDC	24 V	OCP OTP OVP SCP UVLO	90 %	Quarter Brick	120 W	1.45 in			57.9 mm	2.28 "	0.5 in	1	16.5 V	Isolated Module	-40 °C	100 °C	12.7 mm	36.8 mm	5 A
Recom Power RP120Q-2448SRW/P	Through Hole	36 V	2.5 A	ITE (Commercial) Railway	Quarter Brick	2250 VDC	48 V	OCP OTP OVP SCP UVLO	88 %	Quarter Brick	120 W	1.45 in			57.9 mm	2.28 "	0.5 in	1	9 V	Isolated Module	-40 °C	100 °C	12.7 mm	36.8 mm
Recom Power RP120Q-4805SRW/P-HC	Through Hole	75 V	24 A	ITE (Commercial) Railway	Quarter Brick	2250 VDC	5 V	OCP OTP OVP SCP UVLO	89 %	Quarter Brick	120 W	1.45 in	18.8 mm	36.8 mm	57.9 mm	2.28 "	0.74 "	1	16.5 V	Isolated Module	-40 °C	100 °C
Recom Power RP120Q-4815SRW/N-HC	Through Hole	75 V	8 A	ITE (Commercial) Railway	Quarter Brick	2250 VDC	15 V	OCP OTP OVP SCP UVLO	90 %	Quarter Brick	120 W	1.45 in	18.8 mm	36.8 mm	57.9 mm	2.28 "	0.74 "	1	16.5 V	Isolated Module	-40 °C	100 °C
