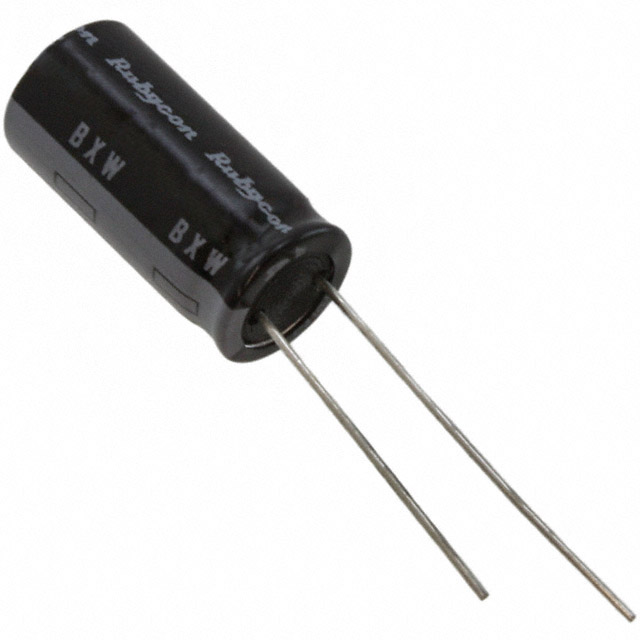

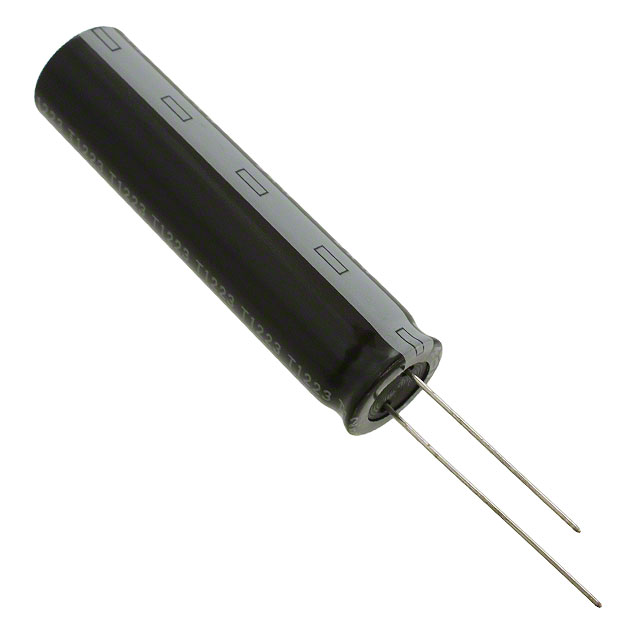

BXW Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED LONG LIFE ELECTROLYTIC CAPACITORS

Part	Lifetime @ Temp.	Tolerance	Capacitance	Mounting Type	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Ripple Current @ Low Frequency	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]
Rubycon 450BXW33MEFR14.5X25	12000 Hrs	20 %	33 ÁF	Through Hole	1 A	0.295 in	7.5 mm	General Purpose	-40 C	105 ░C	1.063 in	27 mm	Can Radial	0.571 in	14.5 mm	450 V	400 mA	Polar
Rubycon 420BXW100MEFR18X30	12000 Hrs	20 %	100 µF	Through Hole	1.755 A	0.295 in	7.5 mm	General Purpose	-40 C	105 ░C			Can Radial	0.709 in	18 mm	420 V	780 mA	Polar	1.26 in	32 mm
Rubycon 400BXW100MEFR16X35	12000 Hrs	20 %	100 µF	Through Hole	1.71 A	0.295 in	7.5 mm	General Purpose	-40 C	105 ░C			Can Radial	0.63 in	16 mm	400 V	760 mA	Polar	1.457 in		37 mm
Rubycon 450BXW39MEFR10X45	12000 Hrs	20 %	39 µF	Through Hole		0.197 "	5 mm	General Purpose	-40 C	105 ░C	1.85 in	47 mm	Can Radial	0.394 in	10 mm	450 V	410 mA	Polar
Rubycon 400BXW100MEFR12.5X50	12000 Hrs	20 %	100 µF	Through Hole	1.71 A	0.197 "	5 mm	General Purpose	-40 C	105 ░C	2.047 in	52 mm	Can Radial	0.492 in	12.5 mm	400 V	760 mA	Polar
Rubycon 200BXW390MEFR18X35	12000 Hrs	20 %	390 µF	Through Hole	2.86 A	0.295 in	7.5 mm	General Purpose	-40 C	105 ░C			Can Radial	0.709 in	18 mm	200 VDC	1.43 A	Polar	1.457 in		37 mm
Rubycon 450BXW56MEFR16X25	12000 Hrs	20 %	56 µF	Through Hole	1.325 A	0.295 in	7.5 mm	General Purpose	-40 C	105 ░C	1.063 in	27 mm	Can Radial	0.63 in	16 mm	450 V	530 mA	Polar
Rubycon 400BXW120MEFR14.5X50	12000 Hrs	20 %	120 µF	Through Hole	1.969 A	0.295 in	7.5 mm	General Purpose	-40 C	105 ░C	2.047 in	52 mm	Can Radial	0.571 in	14.5 mm	400 V	875 mA	Polar
Rubycon 420BXW82MEFR12.5X50	12000 Hrs	20 %	0.082 mF	Through Hole	1.725 A	0.197 "	5 mm	General Purpose	-40 C	105 ░C	2.047 in	52 mm	Can Radial	0.492 in	12.5 mm	420 V	670 mA	Polar
Rubycon 350BXW22MEFR10X20	10000 Hrs	20 %	22 µF	Through Hole	500 mA	0.197 "	5 mm	General Purpose	-40 C	105 ░C			Can Radial	0.394 in	10 mm	350 V	200 mA	Polar				0.866 in	22 mm
