RSF70 Series

Catalog

SENSOR LEVEL SWITCH SINGLE FLOAT

Part	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Switch Actuation Level	Switch Actuation Level	Current	Output Type	Material - Housing & Prism	Mounting Type	Output Configuration	Minimum Liquid Specific Gravity [Min]
Sensata-Crydom RSF77Y100GV	Liquid	-10 °C	105 ░C	300 VDC 300 VAC	9 mm	0.354 "	600 mA	Switch (Single Float)	Polyvinylidene Fluoride (PVDF)	M16x2 Thread Panel Mount	SPST-NC/NO	0.85

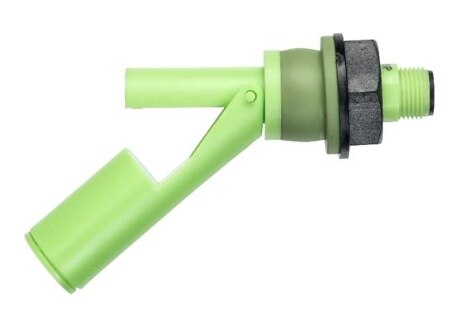

Sensata-Crydom RSF77HVP	Liquid	-10 °C	105 ░C	300 VDC 300 VAC			1 A	Switch (Single Float)	Polyvinylidene Fluoride (PVDF)	M16x2 Thread Panel Mount	SPST-NC/NO	0.85
Sensata-Crydom RSF74YNP	Liquid	-20 ░C	100 °C	120 VDC 240 VAC	20 mm	0.787 in	600 mA	Switch (Single Float)	Polypropylene (PP)	M16x2 Thread Panel Mount	SPST-NC/NO	0.85
Sensata-Crydom RSF76H050TV	Liquid	-10 °C	120 °C	300 VDC 300 VAC	24 mm	0.945 in	1 A	Switch (Single Float)	Polyphenylene Sulphide (PPS)	M16x2 Thread Panel Mount	SPST-NC/NO	0.85

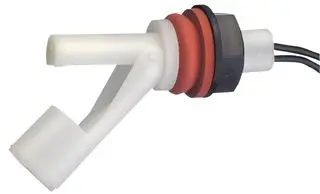

Sensata-Crydom RSF73H100RN	Liquid			300 VDC 300 VAC	20 mm	0.787 in	1 A	Switch (Single Float)	Nylon	M16x2 Thread Panel Mount	SPST-NC/NO	0.85

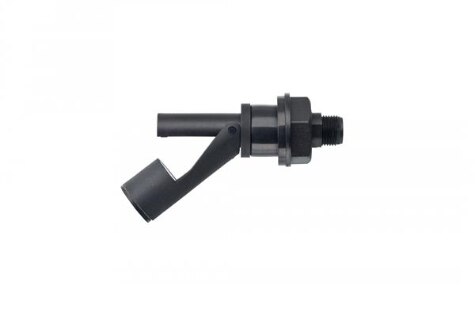

Sensata-Crydom RSF73YNP	Liquid			120 VDC 240 VAC	20 mm	0.787 in	600 mA	Switch (Single Float)	Nylon	M16x2 Thread Panel Mount	SPST-NC/NO	0.85

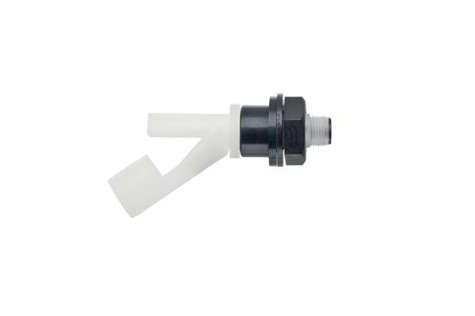

Sensata-Crydom RSF78YNP	Liquid	-20 ░C	100 °C	120 VDC 240 VAC	20 mm	0.787 in	600 mA	Switch (Single Float)	Polypropylene (PP)	M16x2 Thread Panel Mount	SPST-NC/NO	0.8
Sensata-Crydom RSF78HNP	Liquid	-20 ░C	100 °C	300 VDC 300 VAC	20 mm	0.787 in	1 A	Switch (Single Float)	Polypropylene (PP)	M16x2 Thread Panel Mount	SPST-NC/NO	0.8
Sensata-Crydom RSF76YNP	Liquid	-10 °C	120 °C	120 VDC 240 VAC	24 mm	0.945 in	600 mA	Switch (Single Float)	Polyphenylene Sulphide (PPS)	M16x2 Thread Panel Mount	SPST-NC/NO	0.85

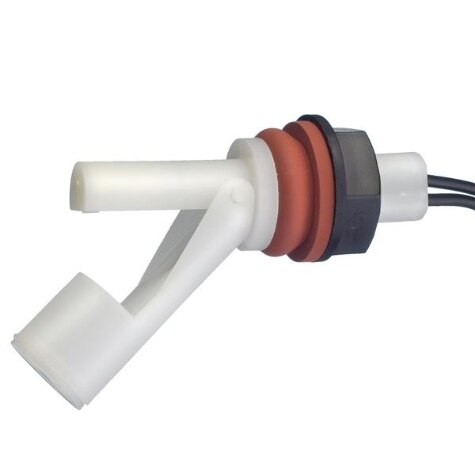

Sensata-Crydom RSF78H100RN	Liquid	-20 ░C	100 °C	300 VDC 300 VAC	20 mm	0.787 in	1 A	Switch (Single Float)	Polypropylene (PP)	M16x2 Thread Panel Mount	SPST-NC/NO	0.8
