T77S1 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

POWER RELAY 5VDC 10A SPST-NO(18.2MM 10.2MM 14.7MM) THT

Part	Coil Resistance	Contact Material	Termination Style	Seal Rating	Switching Voltage [Max]	Contact Rating (Current)	Load - Max Switching	Release Time	Approval Agency	Must Release Voltage	Mounting Type	Relay Type	Coil Current	Coil Type	Coil Voltage	Coil Insulation	Contact Form	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time
TE Connectivity AMP Connectors T77S1D10-05	55.6 Ohms	Silver Cadmium Oxide (AgCdO)	PC Pin	Sealed - Fully	30 VDC 250 VAC	10 A	300 W 2500 VA	4 ms	cURus VDE	0.25 VDC	Through Hole	General Purpose	90 mA	Non Latching	5 VDC	Class F	SPST-NO (1 Form A)	3.75 VDC	85 °C	-30 ░C	10 ms
TE Connectivity AMP Connectors T77S1D3-24	2.88 kOhms	Silver (Ag)	PC Pin	Sealed - Fully	30 VDC 250 VAC	3 A	90 W 750 VA	4 ms	cURus VDE	1.2 VDC	Through Hole	General Purpose	8.3 mA	Non Latching	24 VDC	Class F	SPST-NO (1 Form A)	18 VDC	105 ░C	-30 ░C	10 ms
TE Connectivity AMP Connectors T77S1D10-12	320 Ohms	Silver Cadmium Oxide (AgCdO)	PC Pin	Sealed - Fully	30 VDC 250 VAC	10 A	300 W 2500 VA	4 ms	cURus VDE	0.6 VDC	Through Hole	General Purpose	0.0375 A	Non Latching	12 VDC	Class F	SPST-NO (1 Form A)	9 VDC	85 °C	-30 ░C	10 ms

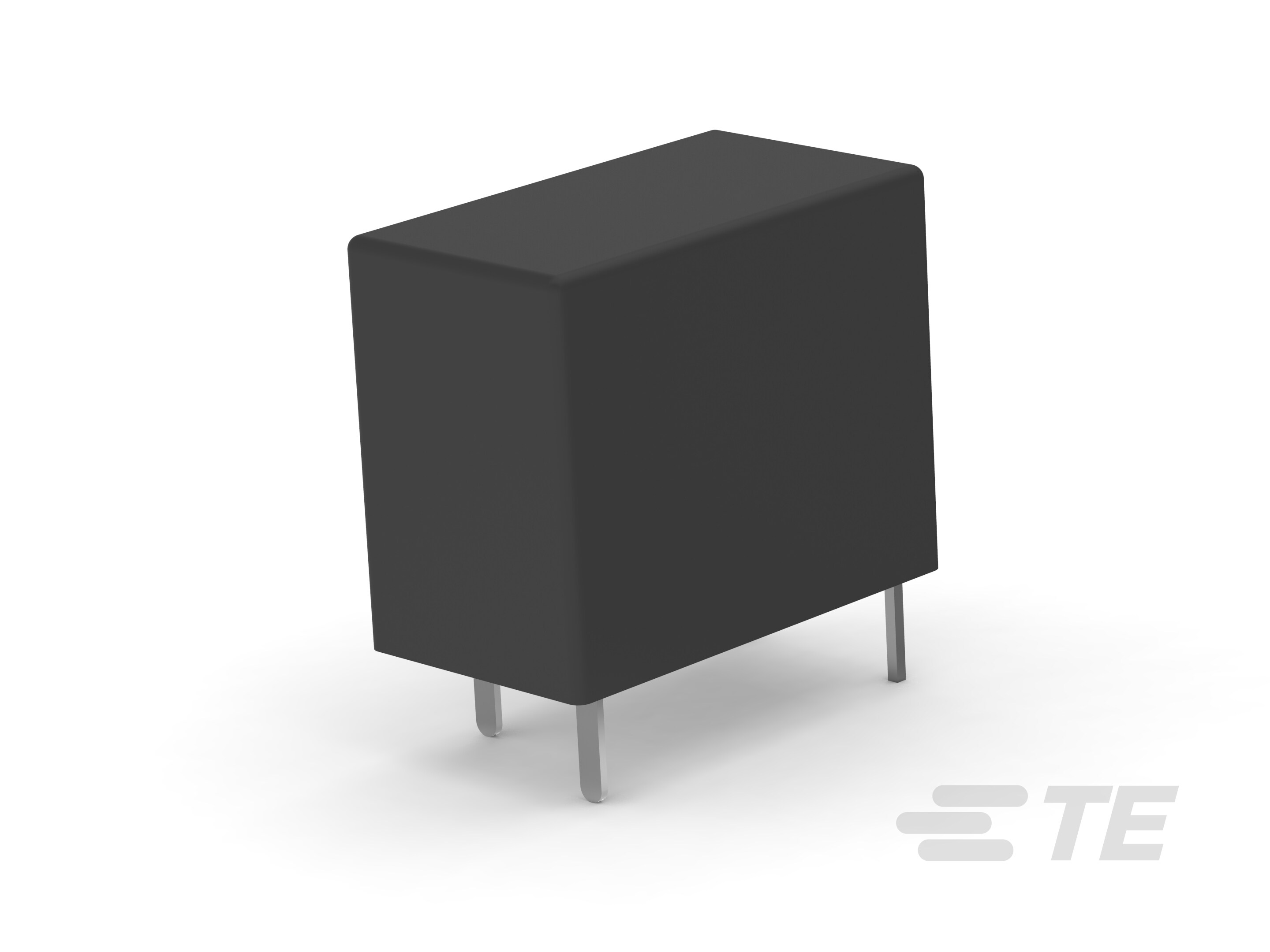

TE Connectivity AMP Connectors T77S1D10-03	20 Ohms	Silver Cadmium Oxide (AgCdO)	PC Pin	Sealed - Fully	30 VDC 250 VAC	10 A	300 W 2500 VA	4 ms	cURus VDE	0.15 VDC	Through Hole	General Purpose	0.15 A	Non Latching		Class F	SPST-NO (1 Form A)	2.25 VDC	85 °C	-30 ░C	10 ms
TE Connectivity AMP Connectors T77S1D3-06-01	180 Ohms	Silver Cadmium Oxide (AgCdO)	PC Pin	Sealed - Fully	30 VDC 277 VAC	10 A	300 W 2500 VA	4 ms	cURus VDE	0.3 VDC	Through Hole	General Purpose	33.3 mA	Non Latching		Class F	SPST-NO (1 Form A)	4.5 VDC	85 °C	-30 ░C	10 ms
