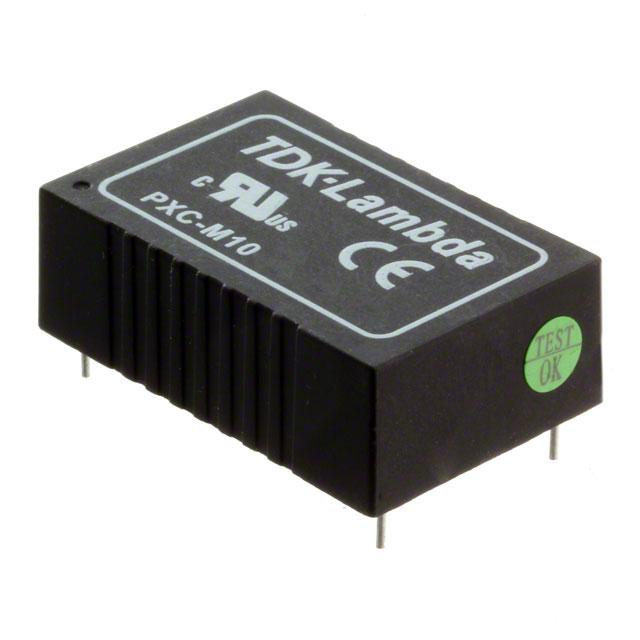

PXC-M10 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, DIP, 4:1, 10 W, 2 OUTPUT, 5 V

Part	Voltage - Output 2	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Features	Mounting Type	Current - Output (Max)	Voltage - Output 1	Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Efficiency	Voltage - Input (Max) [Max]	Voltage - Isolation	Package / Case	Power (Watts)	Current - Output (Max) [Max]
TDK Corporation PXC-M10-24WD05-A	-5 V	9 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	OCP OVP SCP	Through Hole	1 A	5 V	Isolated Module	Medical	-40 C	105 ░C	2	85 %	36 V	5000 V	24-DIP Module 6 Leads	10 W
TDK Corporation PXC-M10-48WS3P3-A		18 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	OCP OVP SCP	Through Hole		3.3 V	Isolated Module	Medical	-40 C	105 ░C	1	82.5 %	75 V	5000 V	24-DIP Module 5 Leads	10 W	2.5 A
TDK Corporation PXC-M10-48WS12-A		18 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	OCP OVP SCP	Through Hole		12 V	Isolated Module	Medical	-40 C	105 ░C	1	89 %	75 V	5000 V	24-DIP Module 5 Leads	10 W	830 mA
TDK Corporation PXC-M10-24WS3P3-A		9 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	OCP OVP SCP	Through Hole		3.3 V	Isolated Module	Medical	-40 C	105 ░C	1	83 %	36 V	5000 V	24-DIP Module 5 Leads	10 W	2.5 A
TDK Corporation PXC-M10-24WS24-A		9 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	OCP OVP SCP	Through Hole		24 V	Isolated Module	Medical	-40 C	105 ░C	1	89 %	36 V	5000 V	24-DIP Module 5 Leads	10 W	416 mA
TDK Corporation PXC-M10-24WD15-A	-15 V	9 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	OCP OVP SCP	Through Hole	333 mA	15 V	Isolated Module	Medical	-40 C	105 ░C	2	88 %	36 V	5000 V	24-DIP Module 6 Leads	10 W
TDK Corporation PXC-M10-48WD15-A	-15 V	18 V	0.8 "	0.4 " 0.41 in	31.8 mm	10.2 mm 10.5 mm	20.3 mm	1.25 in	OCP OVP SCP	Through Hole	333 mA	15 V	Isolated Module	Medical	-40 C	105 ░C	2	88 %	75 V	5000 V	24-DIP Module 6 Leads	10 W
TDK Corporation PXC-M10-24WS05-A		9 V	0.8 "	0.4 " 0.41 in	31.8 mm	10.2 mm 10.5 mm	20.3 mm	1.25 in	OCP OVP SCP	Through Hole		5 V	Isolated Module	Medical	-40 C	105 ░C	1	86.5 %	36 V	5000 V	24-DIP Module 5 Leads	10 W	2 A
