CP-01312 Series
Manufacturer: Cvilux USA
Beta
⌘K

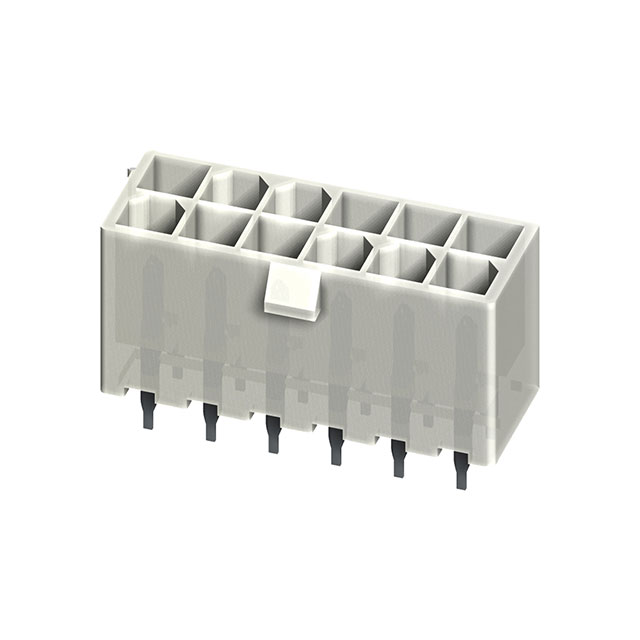

4.20MM 12 POS DUAL ROWS STRAIGHT
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Contact Length - Post [x] | Contact Length - Post | Termination | Style | Insulation Material | Fastening Type | Contact Material | Number of Rows [custom] | Insulation Height [z] | Insulation Height [z] | Mounting Type | Connector Type | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Number of Positions Loaded | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Contact Type | Insulation Color | Row Spacing - Mating | Row Spacing - Mating | Contact Shape | Current Rating (Amps) | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cvilux USA | 2.54 µm | 100 µin | Tin | 0.134 " | 3.4 mm | Solder | Board to Cable/Wire | Nylon 6/6 Polyamide (PA66) | Locking Ramp | Brass | 2 | 12.8 mm | 0.504 " | Through Hole | Header | 600 VAC | 85 °C | -25 °C | 12 | All | UL94 V-2 | 0.165 in | 4.2 mm | Male Pin | Natural | 0.165 in | 4.2 mm | Square | 9 A | Shrouded - 4 Wall | 100 çin | 2.54 çm |
