ADJH23 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

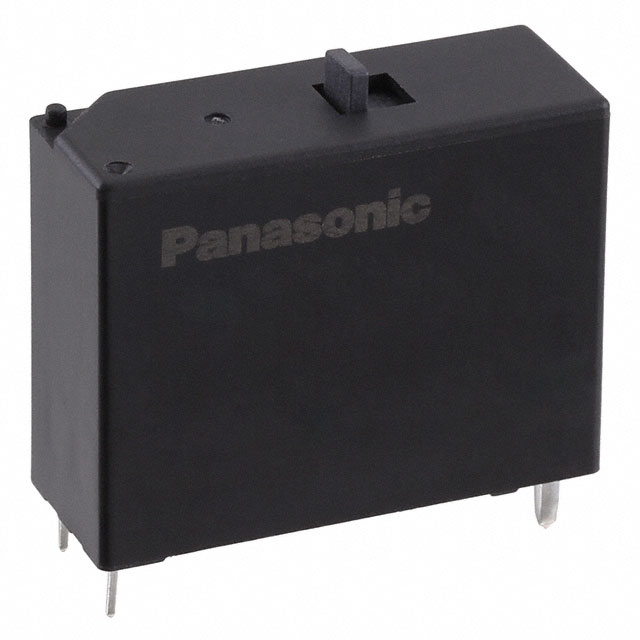

POWER RELAY, SPST-NO, 5 VDC, 50 A, DJ-H (ADJH) SERIES, THROUGH HOLE, LATCHING DUAL COIL
| Part | Coil Resistance | Contact Material | Release Time | Coil Insulation | Approval Agency | Load - Max Switching | Contact Rating (Current) | Operate Time | Termination Style | Relay Type | Switching Voltage [Max] | Must Operate Voltage | Coil Voltage | Coil Current | Contact Form | Seal Rating | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 12.5 Ohms | Silver Tin Oxide (AgSnO) | 20 ms | Class F | cURus VDE | 24000 VA | 50 A | 20 ms | PC Pin | General Purpose | 480 VAC | 3.75 VDC | 5 VDC | 400 mA | SPST-NO (1 Form A) | Sealed - Flux Protection | 85 °C | -40 C | Dual Coil Latching | Through Hole | |
 Panasonic Electronic Components | 288 Ohms | Silver Tin Oxide (AgSnO) | 20 ms | Class F | cURus VDE | 24000 VA | 50 A | 20 ms | PC Pin | General Purpose | 480 VAC | 18 VDC | 24 VDC | 83.3 mA | SPST-NO (1 Form A) | Sealed - Flux Protection | 85 °C | -40 C | Dual Coil Latching | Through Hole | |
 Panasonic Electronic Components | 72 Ohms | Silver Tin Oxide (AgSnO) | 20 ms | Class F | cURus VDE | 24000 VA | 50 A | 20 ms | PC Pin | General Purpose | 480 VAC | 9 VDC | 12 VDC | 167 mA | SPST-NO (1 Form A) | Sealed - Flux Protection | 85 °C | -40 C | Dual Coil Latching | Through Hole | Test Button |
Panasonic Electronic Components | 72 Ohms | Silver Tin Oxide (AgSnO) | 20 ms | Class F | cURus VDE | 24000 VA | 50 A | 20 ms | PC Pin | General Purpose | 480 VAC | 9 VDC | 12 VDC | 167 mA | SPST-NO (1 Form A) | Sealed - Flux Protection | 85 °C | -40 C | Dual Coil Latching | Through Hole | |
 Panasonic Electronic Components | 12.5 Ohms | Silver Tin Oxide (AgSnO) | 20 ms | Class F | cURus VDE | 24000 VA | 50 A | 20 ms | PC Pin | General Purpose | 480 VAC | 3.75 VDC | 5 VDC | 400 mA | SPST-NO (1 Form A) | Sealed - Flux Protection | 85 °C | -40 C | Dual Coil Latching | Through Hole | Test Button |
Panasonic Electronic Components | 288 Ohms | Silver Tin Oxide (AgSnO) | 20 ms | Class F | cURus VDE | 24000 VA | 50 A | 20 ms | PC Pin | General Purpose | 480 VAC | 18 VDC | 24 VDC | 83.3 mA | SPST-NO (1 Form A) | Sealed - Flux Protection | 85 °C | -40 C | Dual Coil Latching | Through Hole | Test Button |
