IHLP-51 Series

Catalog

FIXED IND 470NH 27A 2.55MOHM SMD

Part	Operating Temperature (Max)	Operating Temperature (Min)	Current - Saturation (Isat)	Inductance Frequency - Test	DC Resistance (DCR) (Max)	Tolerance	Frequency - Self Resonant	Mounting Type	Size / Dimension Length	Size / Dimension Width	Current Rating	Package / Case	Shielding	Type	Inductance	Height - Seated (Max)	Package Name
Vishay Dale IHLP3232DZERR47M51	155 °C	-55 °C	19 A	100 kHz	2.55 mOhm	20 %	77 MHz	Surface Mount	0.322 in	0.322 in	27 A	Nonstandard	Shielded	Molded	470 nH	0.157 in

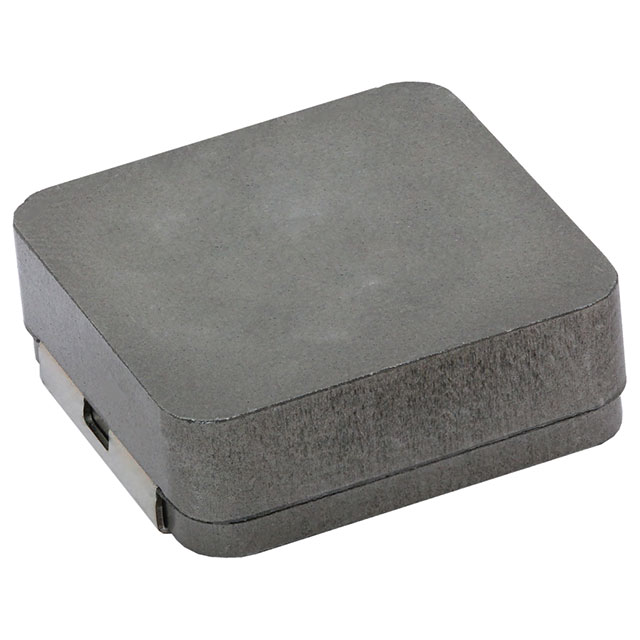

Vishay Dale IHLP7575GZER8R2M51	155 °C	-55 °C	33 A	100 kHz	7.74 mOhm	20 %	8.7 MHz	Surface Mount	0.752 in	0.75 in	20.7 A	Nonstandard	Shielded	Molded	8.2 µH	0.276 in
Vishay Dale IHLP2525CZER1R0M51	125 °C	-55 °C	13 A	100 kHz	8.45 mOhm	20 %	53.2 MHz	Surface Mount	0.27 in	0.255 in	12 A	Nonstandard	Shielded	Molded	1 µH	0.118 in
Vishay Dale IHLP3232DZER220M51	155 °C	-55 °C	3.8 A	100 kHz	110.21 mOhm	20 %	9 MHz	Surface Mount	0.322 in	0.322 in	3.7 A	Nonstandard	Shielded	Molded	22 µH	0.157 in

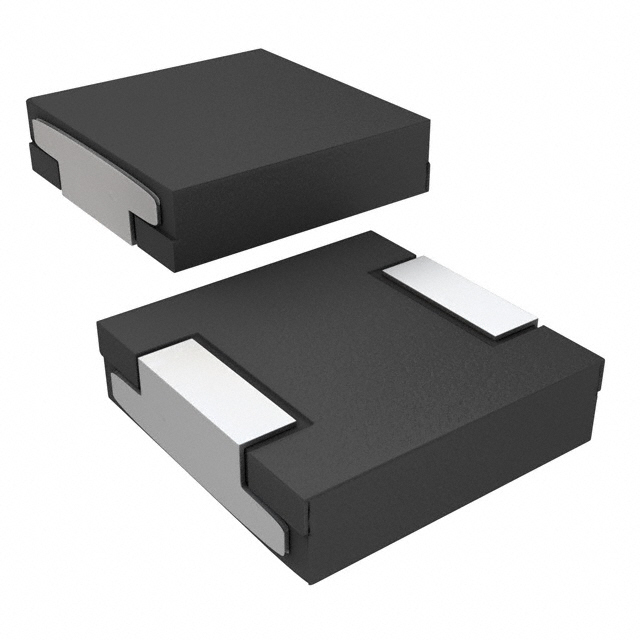

Vishay Dale IHLP5050FDER220M51	125 °C	-55 °C	5.5 A	100 kHz	33.49 mOhm	20 %		Surface Mount	0.522 in	0.508 in	8.3 A	Nonstandard	Shielded	Molded	22 µH	0.252 in
Vishay Dale IHLP2525CZERR82M51	125 °C	-55 °C	16.8 A	100 kHz	7.22 mOhm	20 %	68.6 MHz	Surface Mount	0.27 in	0.255 in	13.8 A	Nonstandard	Shielded	Molded	820 nH	0.118 in
Vishay Dale IHLP1616BZERR68M51	155 °C	-55 °C	6.8 A	100 kHz	18.8 mOhm	20 %	100 MHz	Surface Mount	0.175 in	0.16 in	7.6 A	Nonstandard	Shielded	Molded	680 nH	0.079 in
Vishay Dale IHLP4040DZER3R3M51	125 °C	-55 °C	12 A	100 kHz	11.81 mOhm	20 %	25.5 MHz	Surface Mount	0.425 in	0.4 in	11 A	Nonstandard	Shielded	Molded	3.3 µH	0.157 in	4040
Vishay Dale IHLP4040DZER1R0M51	125 °C	-55 °C	24 A	100 kHz	3.07 mOhm	20 %	37.2 MHz	Surface Mount	0.425 in	0.4 in	23.5 A	Nonstandard	Shielded	Molded	1 µH	0.157 in	4040
Vishay Dale IHLP3232DZER1R0M51	155 °C	-55 °C	16.2 A	100 kHz	4.9 mOhm	20 %	45 MHz	Surface Mount	0.322 in	0.322 in	19 A	Nonstandard	Shielded	Molded	1 µH	0.157 in
