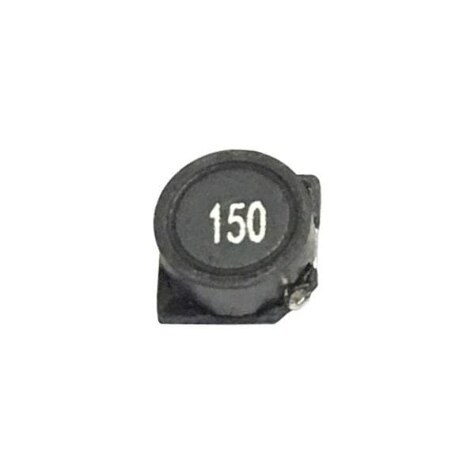

BPCF Series
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Manufacturer: Pulse Electronics
Catalog
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Beta
⌘K
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
| Part | Shielding | Tolerance | Inductance Frequency - Test | Operating Temperature (Max) | Operating Temperature (Min) | Current - Saturation (Isat) | Size / Dimension Width | Size / Dimension Length | Current Rating | DC Resistance (DCR) | Package / Case | Height - Seated (Max) | Mounting Type | Inductance | Material - Core |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | Shielded | 30 % | 100 kHz | 125 °C | -40 °C | 7.2 A | 0.492 in | 0.492 in | 5.9 A | 13.1 mOhm | Nonstandard | 0.309 in | Surface Mount | 6.8 µH | Ferrite |
Pulse Electronics | Shielded | 30 % | 100 kHz | 125 °C | -40 °C | 4.2 A | 0.492 in | 0.492 in | 4.4 A | 23.7 mOhm | Nonstandard | 0.27 in | Surface Mount | 15 µH | Ferrite |
 Pulse Electronics | Shielded | 20 % | 100 kHz | 125 °C | -40 °C | 3.6 A | 0.276 in | 0.276 in | 3.1 A | 28 mOhm | Nonstandard | 0.228 in | Surface Mount | 4.7 µH | Ferrite |
 Pulse Electronics | Shielded | 10 % | 100 kHz | 125 °C | -40 °C | 0.33 mA | 0.276 in | 0.276 in | 0.45 A | 520 mOhm | Nonstandard | 0.189 in | Surface Mount | 220 µH | Ferrite |
Pulse Electronics | Shielded | 20 % | 100 kHz | 125 °C | -40 °C | 1.3 A | 0.276 in | 0.276 in | 1.4 A | 120 mOhm | Nonstandard | 0.228 in | Surface Mount | 33 µH | Ferrite |
Pulse Electronics | Shielded | 10 % | 100 kHz | 125 °C | -40 °C | 0.34 mA | 0.492 in | 0.492 in | 600 mA | 1.12 Ohm | Nonstandard | 0.228 in | Surface Mount | 1 mH | Ferrite |
Pulse Electronics | Shielded | 20 % | 100 kHz | 125 °C | -40 °C | 1.5 A | 0.492 in | 0.492 in | 1.6 A | 175 mOhm | Nonstandard | 0.309 in | Surface Mount | 150 µH | Ferrite |
Pulse Electronics | Shielded | 30 % | 100 kHz | 125 °C | -40 °C | 1.3 A | 0.492 in | 0.492 in | 2.2 A | 83.2 mOhm | Nonstandard | 0.228 in | Surface Mount | 68 µH | Ferrite |
Pulse Electronics | Shielded | 30 % | 100 kHz | 125 °C | -40 °C | 5.3 A | 0.276 in | 0.276 in | 3.5 A | 21.7 mOhm | Nonstandard | 0.228 in | Surface Mount | 2.2 µH | Ferrite |
Pulse Electronics | Shielded | 30 % | 100 kHz | 125 °C | -40 °C | 2.8 A | 0.276 in | 0.276 in | 2.8 A | 21 mOhm | Nonstandard | 0.138 in | Surface Mount | 2.2 µH | Ferrite |
