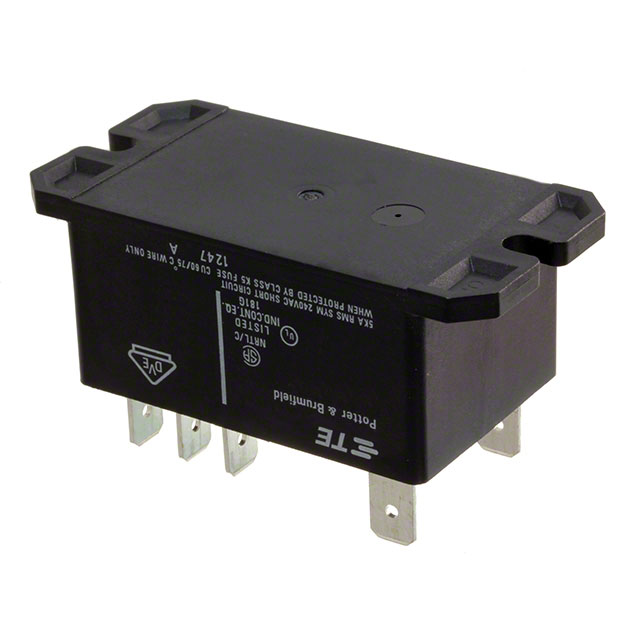

T92S1 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE DPDT 30A 36V
| Part | Coil Resistance | Must Release Voltage | Operate Time | Coil Voltage | Contact Rating (Current) | Release Time | Coil Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Termination Style | Switching Voltage [Max] | Contact Form | Coil Type | Mounting Type | Must Operate Voltage | Coil Current | Contact Material | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 763 Ohms | 3.6 VDC | 15 ms | 36 VDC | 30 A | 15 ms | Class F | -55 C | 85 °C | CSA TUV UL UR VDE | Quick Connect - 0.250" (6.3mm) | 600 VAC | DPDT (2 Form C) | Non Latching | Chassis Mount | 27 VDC | 47.2 mA | Silver Cadmium Oxide (AgCdO) | General Purpose |
